Pentagonal Shower Enclosure - Farnham

This pentagonal shower enclosure shows how smart glass design can work in a tight bathroom. When you have a toilet on one side and a basin on the other, finding the right shower solution becomes tricky. Our custom pentagonal design fits perfectly into the corner while giving easy access through the angled door entry.

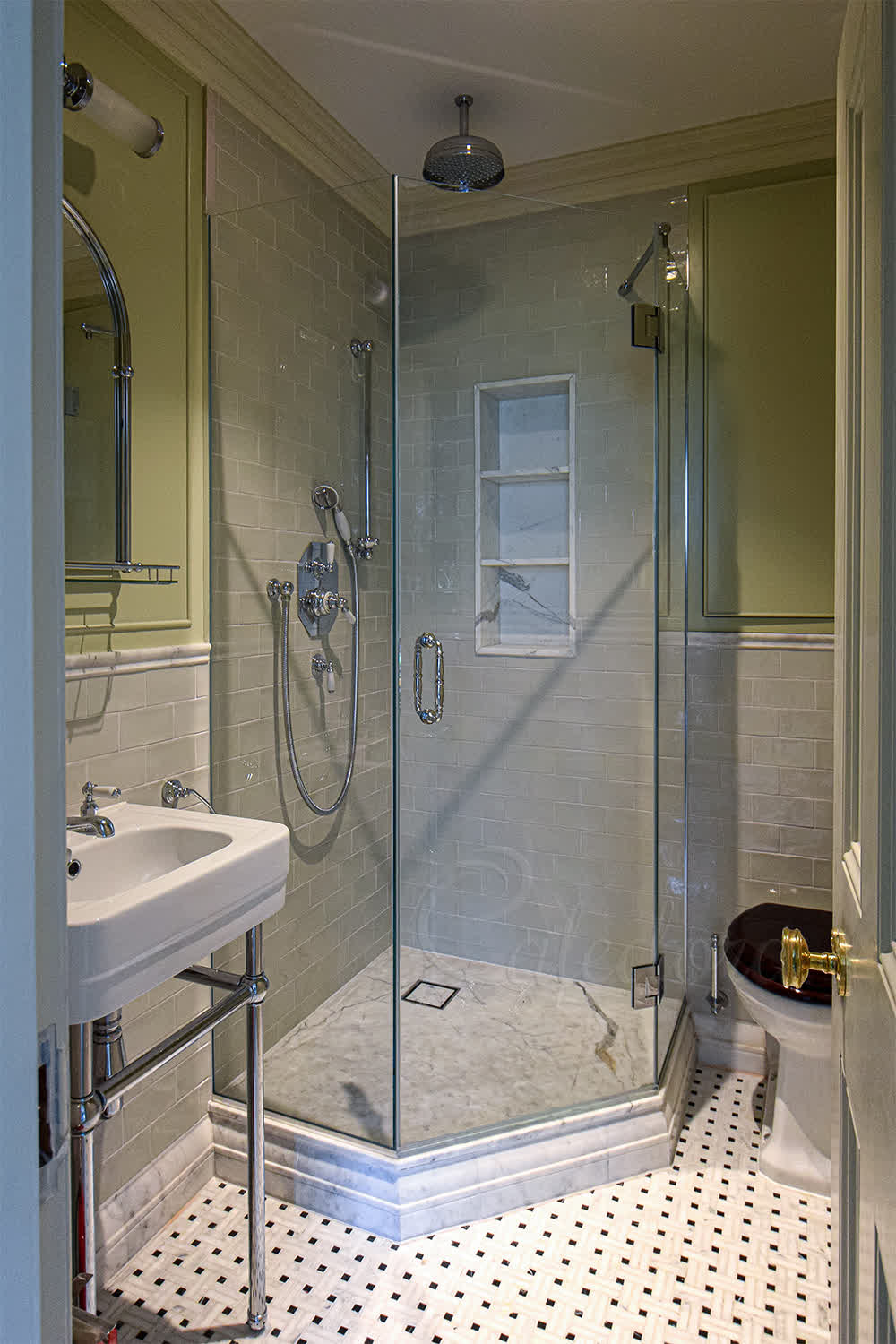

Pentagonal shower enclosure with chrome fixtures in a small Farnham bathroom

Pentagonal Shower Enclosure Space Solution

We created this pentagonal shower enclosure to solve the space problem in this small Farnham bathroom. The diamond shape design lets the door open at a 135-degree angle, clearing both the toilet and basin without any issues. The ultra clear glass panels keep the room feeling bright and open despite the limited space.

The marble base adds a touch of luxury while the chrome fixtures match the existing bathroom taps and fittings. This type of shower enclosure works well in bathrooms where standard square or rectangular designs won't fit properly.

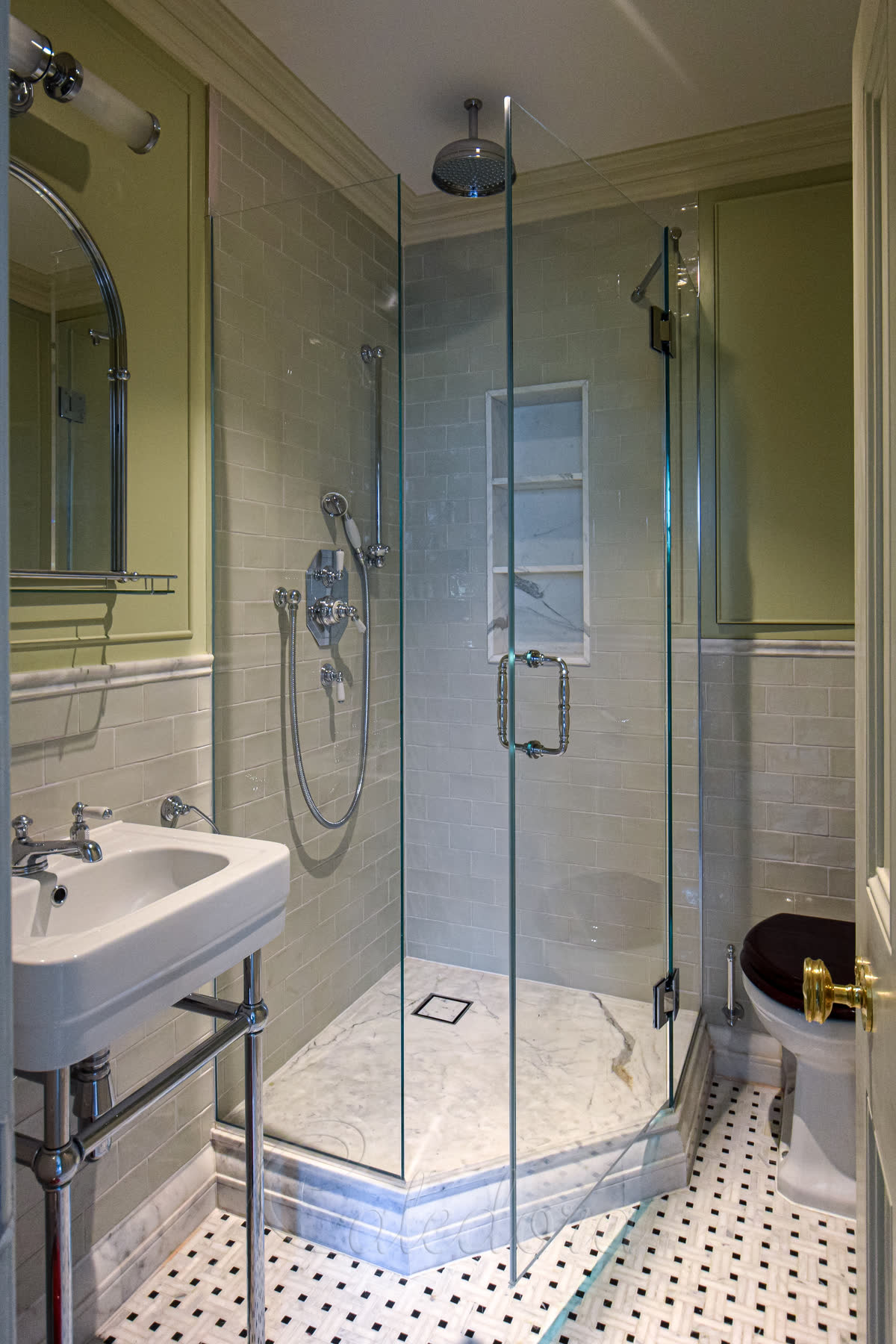

Diamond shower enclosure showing corner entry design with ultra clear glass

Diamond Shower Enclosure Installation Details

The diamond shower enclosure design creates about 850 x 850mm of showering space - quite roomy for this type of setup. We installed the glass panels on top of the marble upstand using our U-channels, which sit flush with the tiles on the lower half where they meet the wall. The reinforcement arm at the top provides extra stability without looking bulky.

Above the tile line, our profiles work differently - inside the shower the tiled wall continues up, while outside in the bathroom the light green painted wall shows our profiles sitting on top. This careful planning around the existing tile and paint work is available through our custom glass service. The polished chrome hardware creates a coordinated look throughout the space.

Product Specification

Style

Pentagon Shower Enclosure

Metal Finish

Polished Chrome

Glass Type

10mm Ultra Clear Glass

Frame Style

Frameless

Special Features

Minimalistic Seals, 135-Degree Hinges, Reinforcement Arm

Price Range

£££

Product Dimensions

Width

850mm

Depth

850mm

Height

2100mm

Custom sizes available - contact us for bespoke measurements

How Long Does Pentagonal Shower Enclosure Take to Manufacture?

Pentagonal frameless designs demand specialized glass cutting for perfect angles. Your Pentagonal Shower Enclosure timeline includes complex geometry calculations.

📋 Multiple Items: Each additional shower enclosure may extend Design and Installation by approximately 1 working day. However, orders of 5+ units benefit from streamlined production processes that reduce per-unit time. We'll provide an optimized timeline for your specific project.

Tiling Ready

Simplest Process

Your corner space is tiled and ready for specialized glass cutting. We'll measure all sides for perfect frameless connections.

Site Survey 1 day
Precise measurements and photos
Design & 3D 3 days
Create and approve your frameless design
Glass Production 8 days
Cutting, tempering, and processing
Installation 1 days
Professional fitting with minimal hardware

✓ Streamlined Process: Frameless options require less time than framed equivalents - just 13 working days total with precise measurements taken in one visit.

13
Working Days Total
8
Production Days
1
Days On-Site

Tiling Not Ready

Extended Timeline

Your pentagonal space needs tiling before specialized glass cutting. We'll measure basic angles for design, then return for precise five-surface measurements.

Initial Visit 1 day
Rough measurements and photos
Design & 3D 3 days
Create initial frameless design
Waiting for Tiling Variable
Depends on your tiling schedule
Final Measurements 1 day
Precise measurements once tiling is complete
Design Adjustments 1 day
Update design if dimensions changed
Glass Production 8 days
Cut to exact measurements
Installation 1 days
Professional fitting with minimal hardware

💡 Flexible Timeline: The waiting period begins after design confirmation (day 4) and varies based on your tiling schedule. If your tiling is completed during this early period, we can arrange the final measurements earlier and advance the entire schedule - moving final measurements, design adjustments, glass production, and installation to start as early as day 5. The total timeline shows the minimum 15 working days if tiling is ready when design is confirmed.

15
Working Days Minimum
11
Production Days
1
Days On-Site
