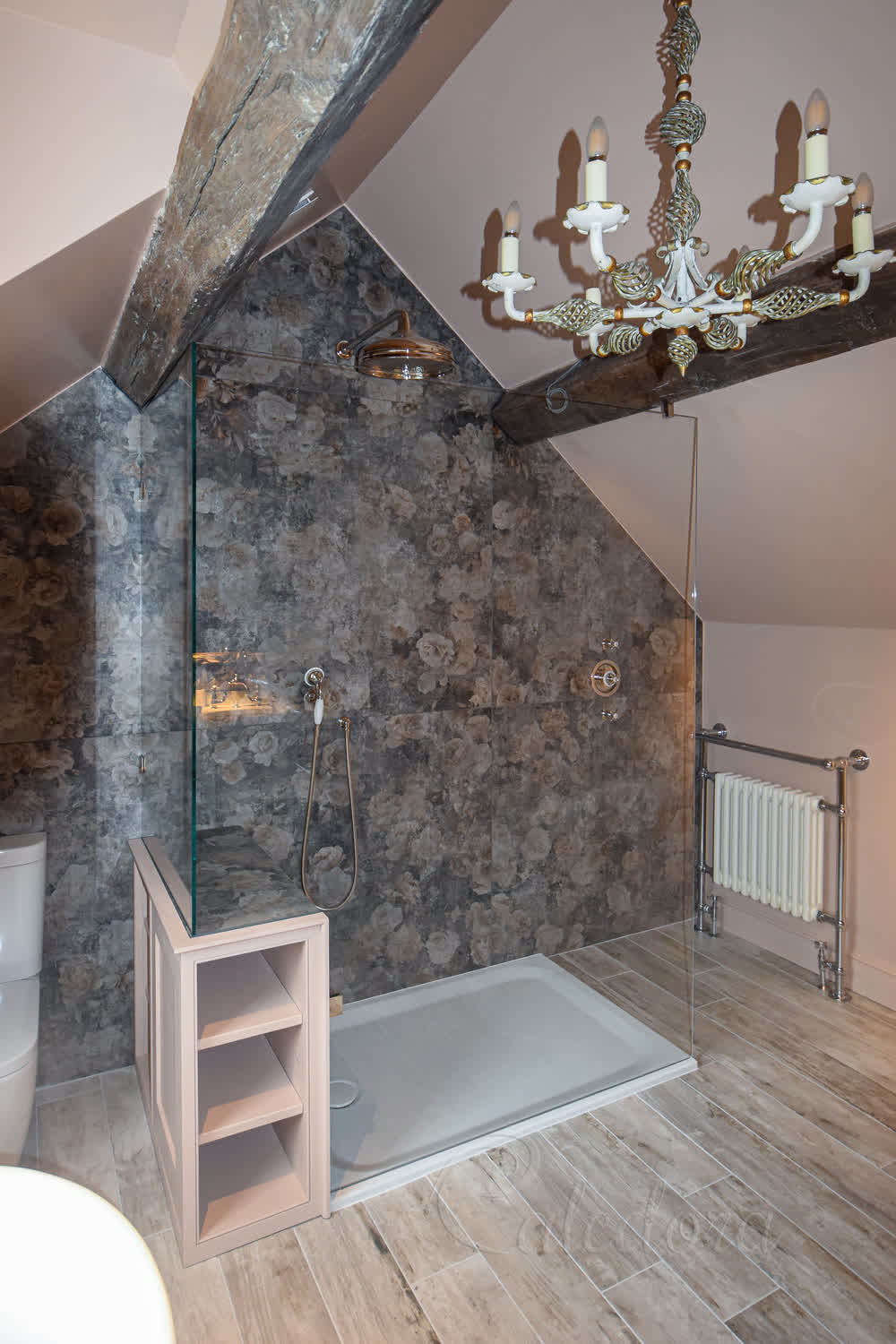

This custom L shaped shower screen transforms a loft bathroom in Leicester. Created with frameless ultra-clear glass and polished nickel fittings, it features a bespoke cut-out design that wraps around a built-in storage bench.

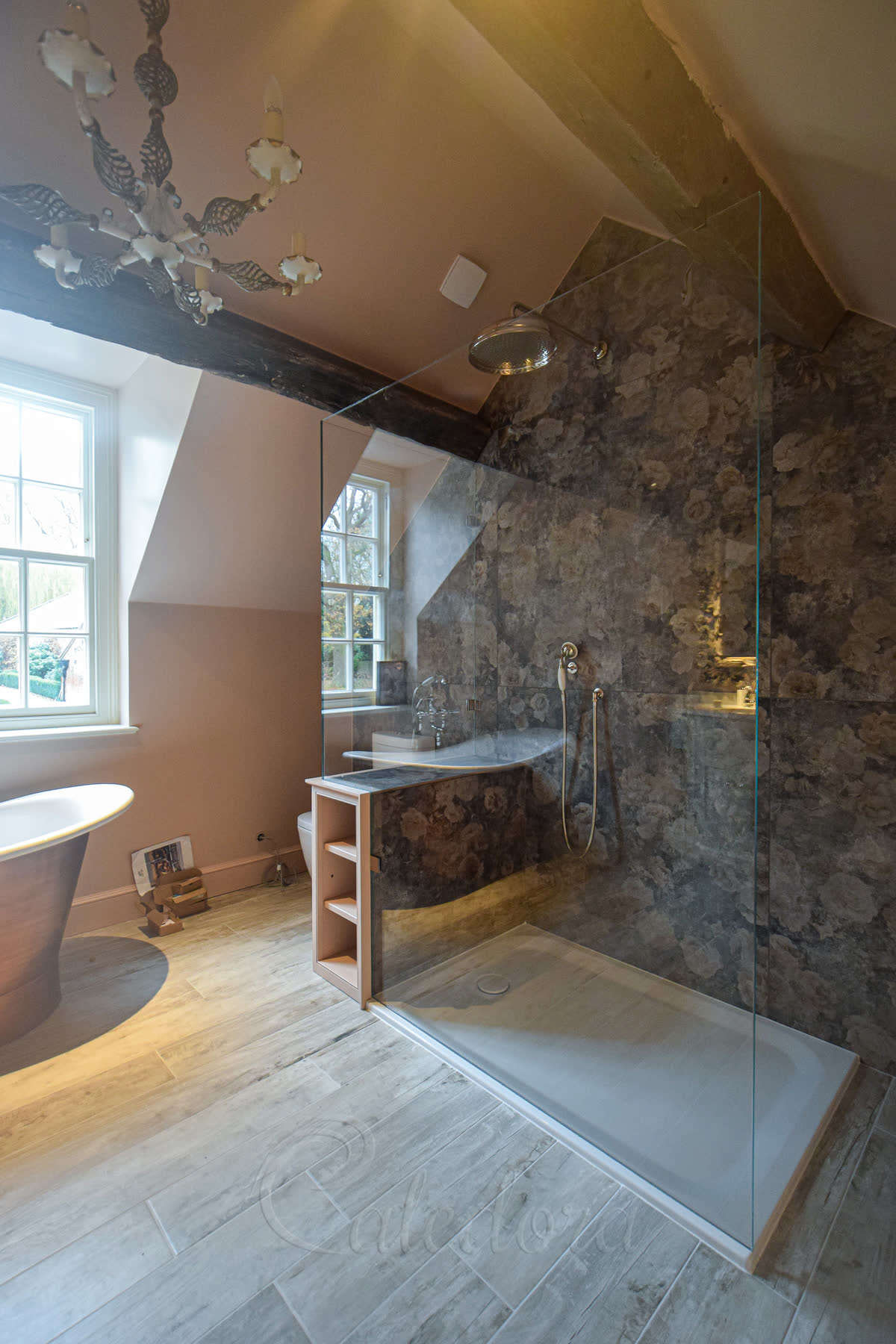

The L shaped shower screen was perfectly fitted to follow this loft bathroom's sloped ceiling. We created a large panel measuring 1500mm × 2000mm with a smaller 900mm × 1500mm panel that sits on top of the tiled bench.

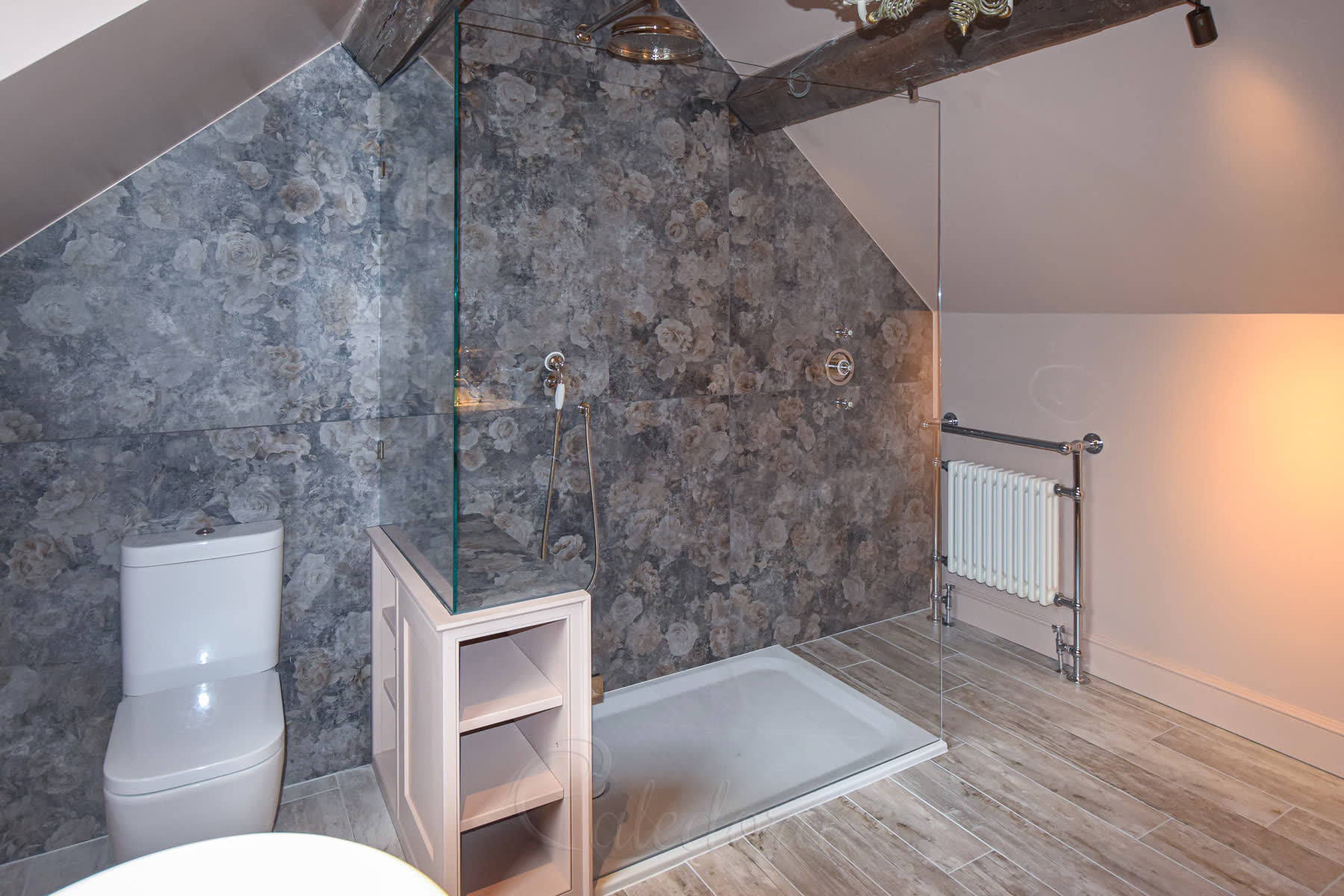

Our custom shower design includes a custom-cut main screen that wraps around the tiled bench. This solution maximizes the showering area while maintaining the bathroom's elegant aesthetic.
We used 10mm ultra-clear glass which removes the greenish tint found in standard glass. This choice enhances the visual lightness of the screen and highlights the beautiful floral tile pattern behind it.
The frameless design creates an uninterrupted view of the patterned wall tiles. We left a precise 2mm gap between the glass edge and surrounding surfaces, sealed with transparent mastic for a nearly invisible finish.
The large screen is supported at the top with a custom nickel-plated bracket attached to the timber joist. This provides excellent stability while maintaining the clean aesthetic of the frameless design.

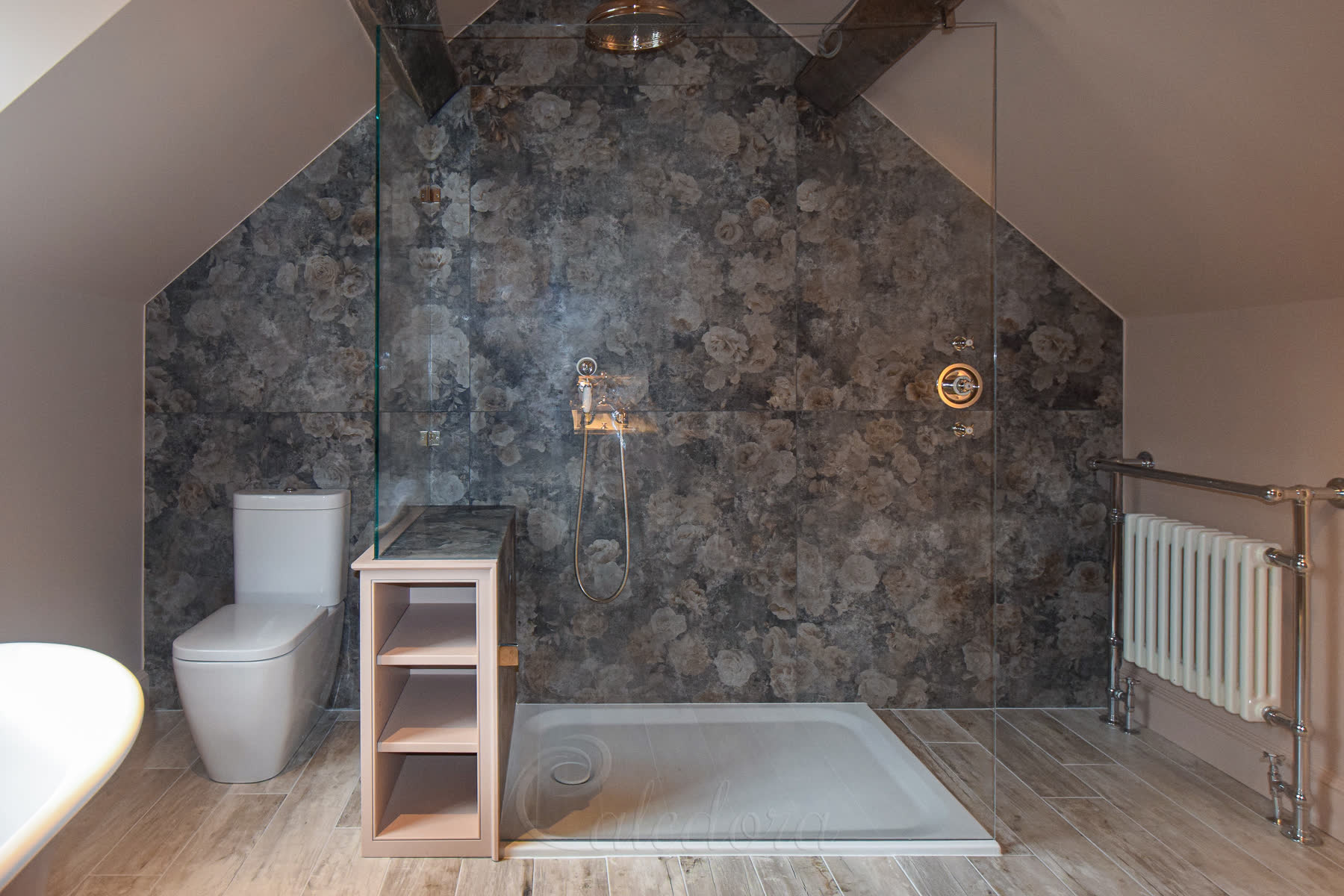

Wall brackets secure the smaller screen to the wall, ensuring a perfect fit with the main panel. Our L-shaped shower screens use high-quality fixtures that match your bathroom's existing hardware for a cohesive look.

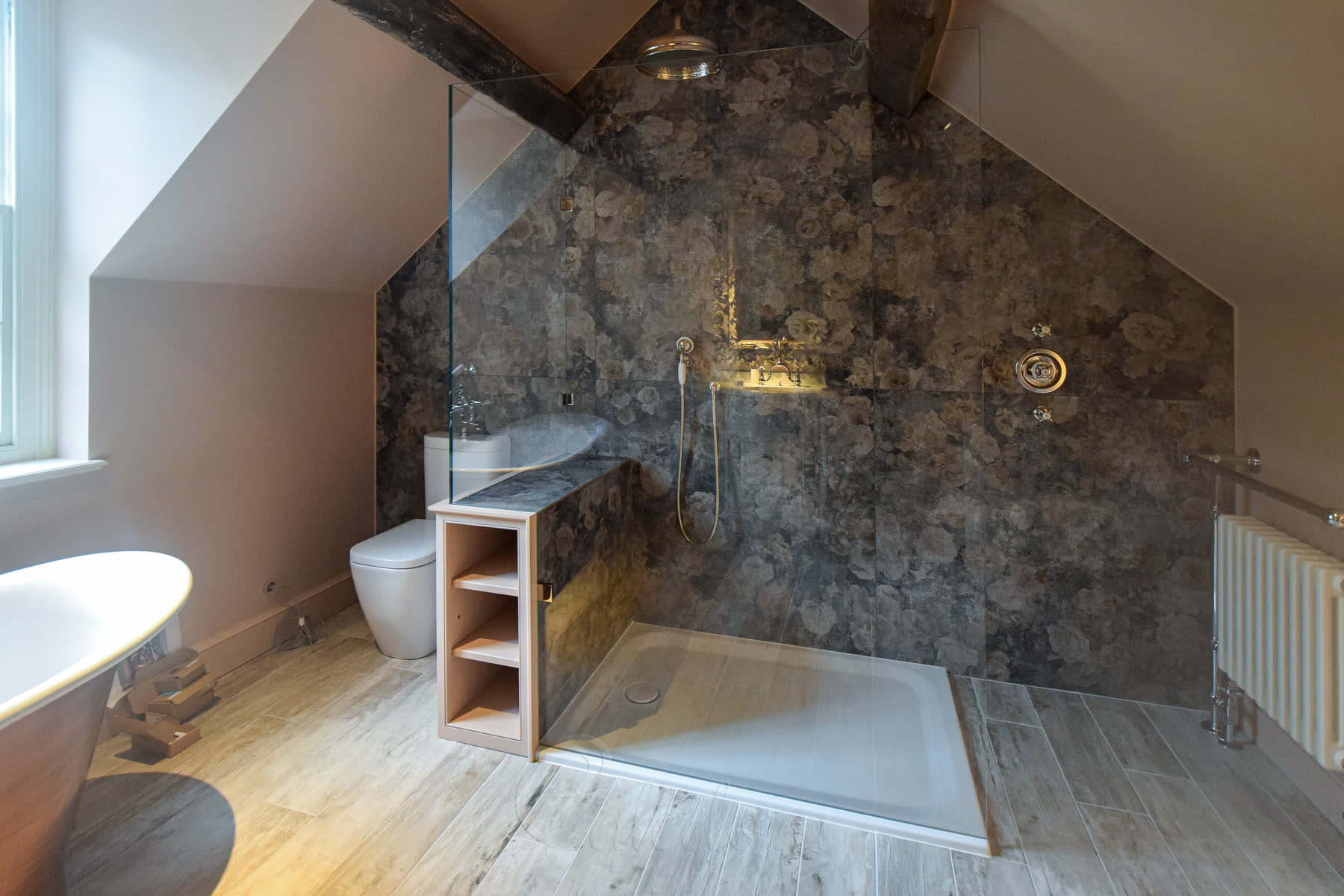

We joined the two glass panels using UV glass glue - creating a permanent, water-tight bond. This eliminates the need for visible metal connectors between the panels and enhances the screen's minimalist appearance.
The joined panels create a continuous L shape that follows the bathroom layout perfectly. This seamless transition is only possible with our precision measuring and skilled installation techniques.
This shower screen demonstrates how well our made-to-measure glass works in unusual spaces. The L-shaped design perfectly accommodates the built-in bench while maximizing the showering area in this loft bathroom.
The polished nickel fixtures complement the brass taps and shower controls. We can match any metal finish in your bathroom, ensuring your new shower screen integrates beautifully with your existing décor.
Walk-in Shower Screen
Polished Nickel
10mm Ultra Clear
Frameless
Large Size, Glass Cut-out, UV-bonding
££
Walk-in frameless designs create seamless shower entries with minimal visual interruption. The L Shaped Shower Screen timeline prioritizes structural integrity and clean lines.
📋 Multiple Items: Each additional shower enclosure may extend Design and Installation by approximately 1 working day. However, orders of 5+ units benefit from streamlined production processes that reduce per-unit time. We'll provide an optimized timeline for your specific project.
Your walls are tiled and ready for frameless installation. We'll take precise measurements for minimal hardware placement, then proceed directly with glass production.
✓ Streamlined Process: Frameless options require less time than framed equivalents - just 14 working days total with precise measurements taken in one visit.
Your walls need tiling before frameless installation. We'll take initial measurements for visualization, then return for final measurements and proceed with glass production.
💡 Flexible Timeline: The waiting period begins after design confirmation (day 4) and varies based on your tiling schedule. If your tiling is completed during this early period, we can arrange the final measurements earlier and advance the entire schedule - moving final measurements, design adjustments, glass production, and installation to start as early as day 5. The total timeline shows the minimum 16 working days if tiling is ready when design is confirmed.
