Walk-in Shower Glass Panel - London

This walk-in shower glass panel shows our wall and ceiling recessed installation technique. The glass is fitted into grooves that were made before tiling, creating a completely frameless look with no visible metal fixings. The mastic seal matches the tile colour perfectly.

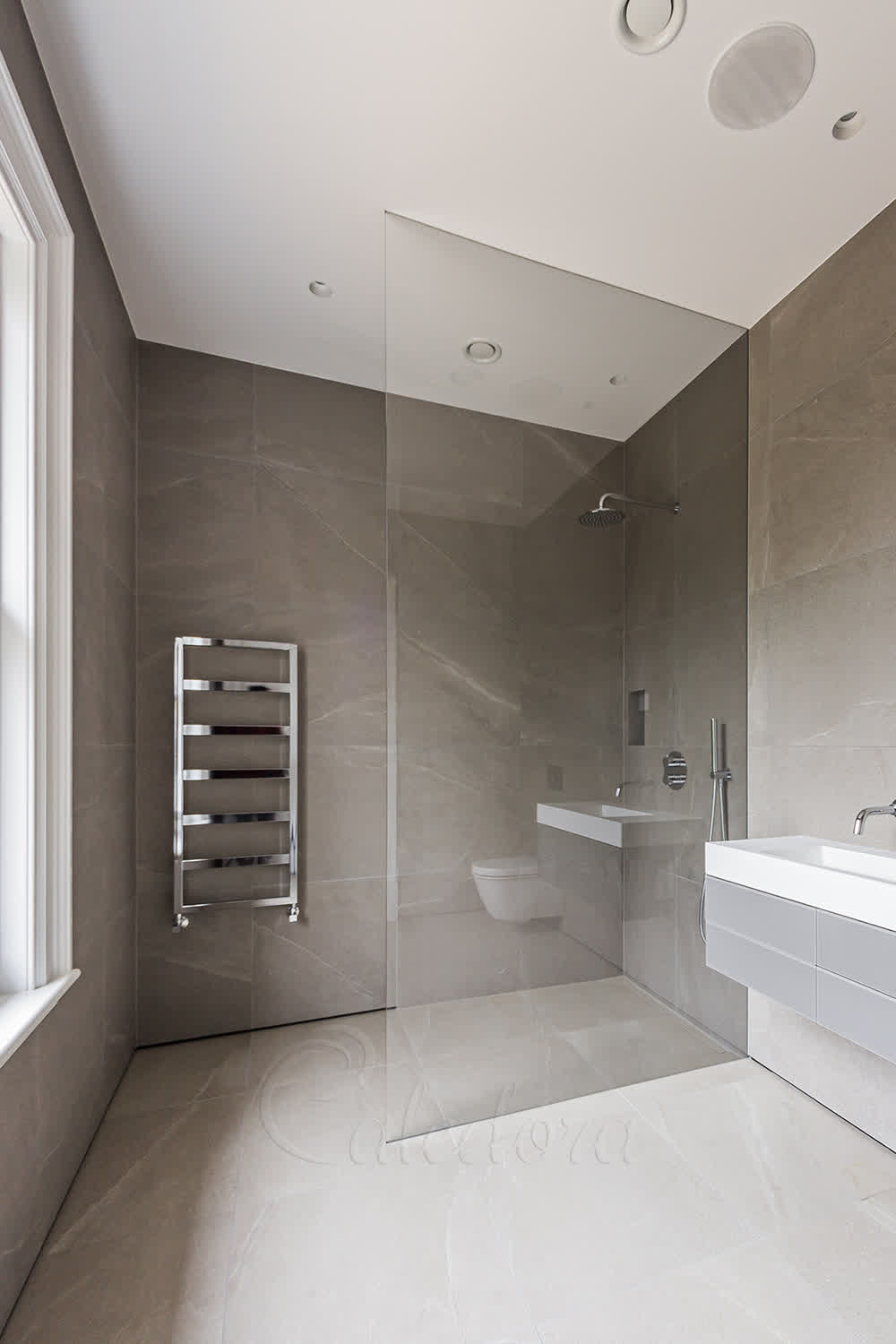

Walk-in shower glass panel recessed into wall and ceiling grooves with no visible metal fixings in modern bathroom

Wall and Ceiling Recessed Installation

The glass panel is fitted into grooves that were cut into both the wall and ceiling before the tiles were installed. This creates a completely clean look with no visible brackets or frames. The 10mm ultra clear glass goes all the way to the ceiling at 2400mm height.

This installation method requires careful planning during the construction phase. We visit first to install temporary profiles that mark where the grooves need to be made. After the tiling is complete, we return to install the glass panel into the prepared grooves. The result is a perfectly seamless installation.

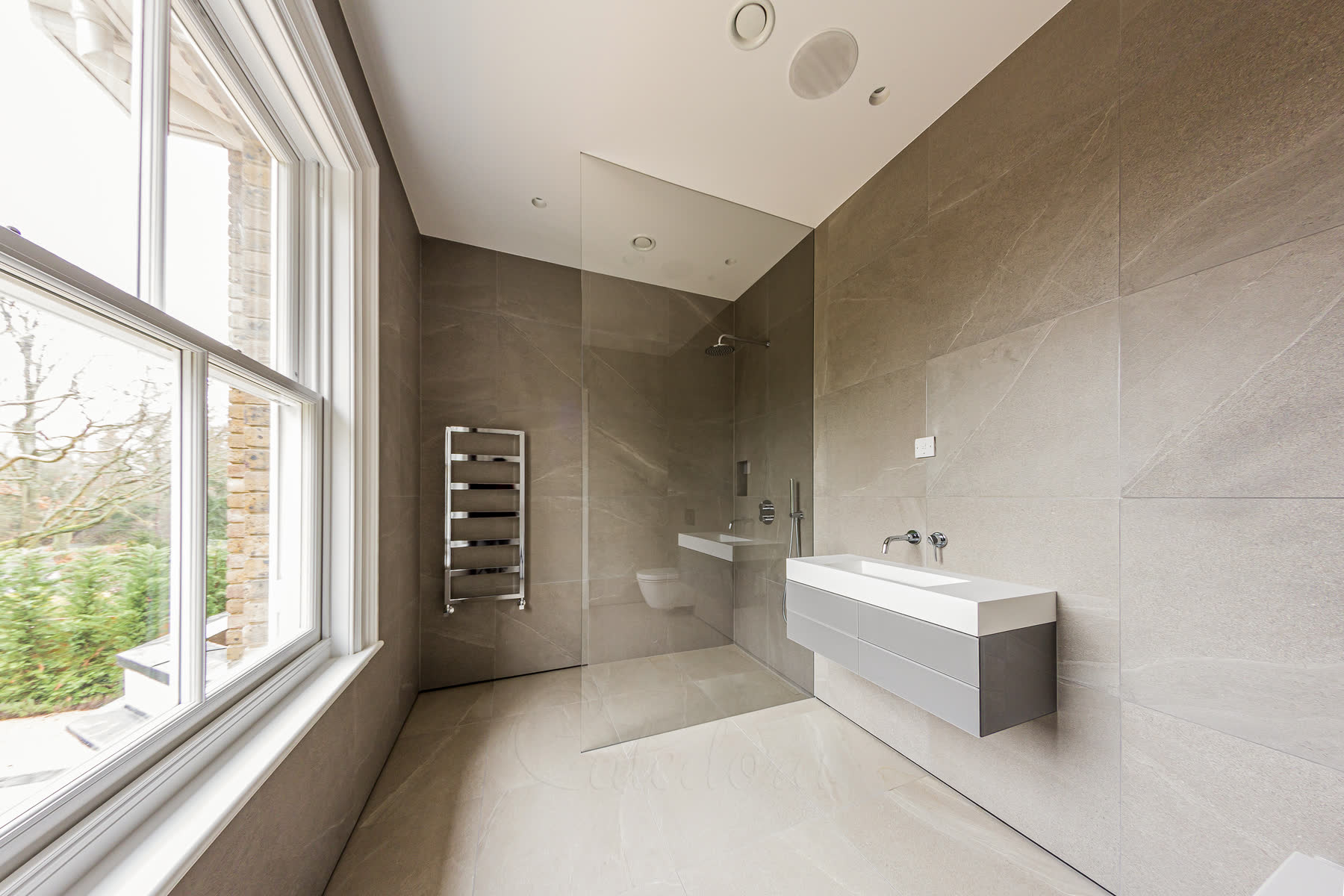

Complete bathroom view showing frameless walk-in shower glass panel with wall recessed installation and grey marble tiles

Invisible Fixings with Matching Mastic

You can see how the glass appears to float with no visible metal fixings anywhere. The mastic seal around the edges matches the tile colour exactly, making the installation look completely integrated. The grey marble tiles create a luxurious backdrop for the clear glass.

Using mastic that matches the grout colour is essential for this type of installation. It creates the illusion that the glass is part of the wall structure rather than an added element. Through our glass panel solutions, we ensure perfect colour matching and professional sealing.

Walk-in shower glass panel installed next to architrave showing precise fitting and invisible grooves

Precise Fitting Next to Architrave

This image shows how precisely the glass panel fits next to the door architrave. The installation in this second bathroom of the same house demonstrates the same specification and size. The glass edge aligns perfectly with the existing architecture without any visible gaps or brackets.

Getting the measurements exactly right is crucial when the glass needs to fit against existing architectural features. The grooves must be positioned perfectly to ensure the glass aligns with door frames and other fixed elements. This level of precision is what makes the installation look completely integrated.

Product Specification

Style

Walk-in Shower Screen

Metal Finish

none

Glass Type

10mm Ultra Clear

Frame Style

Frameless

Special Features

Full Height, Wall&Ceiling Recessed Panel

Price Range

££

Product Dimensions

Width

1100mm

Height

2400mm

Custom sizes available - contact us for bespoke measurements

Production Time for Walk-in Shower Glass Panel

Walk-in frameless designs create seamless shower entries with minimal visual interruption. The Walk-in Shower Glass Panel timeline prioritizes structural integrity and clean lines.

📋 Multiple Items: Each additional shower enclosure may extend Design and Installation by approximately 1 working day. However, orders of 5+ units benefit from streamlined production processes that reduce per-unit time. We'll provide an optimized timeline for your specific project.

Tiling Ready

Simplest Process

Your walls are tiled and ready for frameless installation. We'll take precise measurements for minimal hardware placement, then proceed directly with glass production.

Site Survey 1 day
Precise measurements and photos
Design & 3D 2 days
Create and approve your frameless design
Glass Production 8 days
Cutting, tempering, and processing
Installation 2 days
Professional fitting with minimal hardware

✓ Streamlined Process: Frameless options require less time than framed equivalents - just 13 working days total with precise measurements taken in one visit.

13
Working Days Total
8
Production Days
2
Days On-Site

Timeline Considerations for This Project

  • • The installation will take two days instead of one. We need to come one day to install temporary profiles which mark where the panel will be installed before the tiling. On another day we visit after tiling to install the glass panel into the grooves.

Tiling Not Ready

Extended Timeline

Your walls need tiling before frameless installation. We'll take initial measurements for visualization, then return for final measurements and proceed with glass production.

Initial Visit 1 day
Rough measurements and photos
Design & 3D 2 days
Create initial frameless design
Waiting for Tiling Variable
Depends on your tiling schedule
Final Measurements 1 day
Precise measurements once tiling is complete
Design Adjustments 1 day
Update design if dimensions changed
Glass Production 8 days
Cut to exact measurements
Installation 2 days
Professional fitting with minimal hardware

💡 Flexible Timeline: The waiting period begins after design confirmation (day 3) and varies based on your tiling schedule. If your tiling is completed during this early period, we can arrange the final measurements earlier and advance the entire schedule - moving final measurements, design adjustments, glass production, and installation to start as early as day 4. The total timeline shows the minimum 15 working days if tiling is ready when design is confirmed.

15
Working Days Minimum
12
Production Days
2
Days On-Site

Interested in a Similar Design?

Let our experts create a bespoke shower solution perfectly tailored to your space. From survey to installation, we handle everything with precision and care.

Design Your Walk-In Shower

Similar Shower Room Ideas

Explore more shower room ideas with similar styles, finishes, and features. Find inspiration from our portfolio of completed installations that match your design preferences.

Frameless curved shower screen with perfect radius in luxury Sussex bathroom
Curved Shower Screen
Frameless floor to ceiling shower screen recessed into marble wall with white shower tray
Floor to Ceiling Shower Screen
Full height walk-in shower screen recessed between marble and plastered wall with no visible frame
Full Height Shower Screen
Frameless L-shaped shower screen with nickel fittings in a loft bathroom
L Shaped Shower Screen
View Design Portfolio

Understanding Our Pricing

Each symbol reflects a full-service estimate, including survey, design, production, and installation. We only offer complete packages — no supply-only options.

Prices are adjusted based on real projects and assume the installation is within one hour's travel from one of our offices. Travel beyond this range may increase the price.

VAT is not included and will be added where required. Displayed prices are for guidance only and reflect localised, complete installations.

Price Range Guide

  • £ Up to £1,500
  • ££ £1,501 - £2,500
  • £££ £2,501 - £3,200
  • ££££ £3,201 - £8,000
  • £££££ £8,001+
