Bi-fold Shower Enclosure - London

This bi-fold shower enclosure shows how smart design solutions work when space is limited. The brushed nickel finish matches the taps perfectly, while the bi-fold door opens outward to save space in the bathroom.

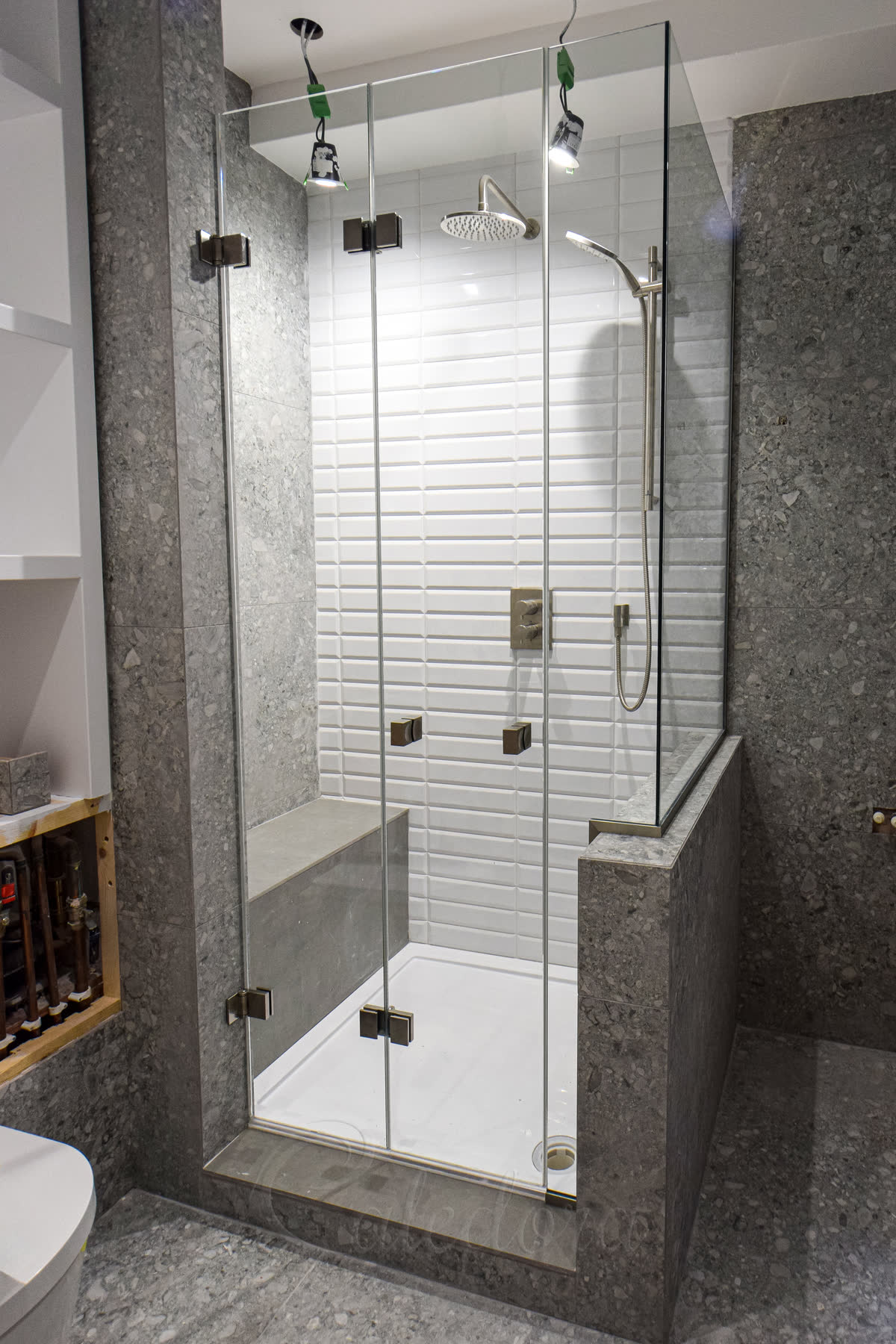

Brushed nickel bi-fold shower enclosure with closed folding door and glass cut-out around taps

Working with an Installed Tray

This project shows why it's always best to involve us before tiling starts. The tray was already installed and tiles laid when the client approached us, which limited our design options. The tray sat too deep in the shower with tiles built flush to the white tray edge.

We had two choices for the hinge placement due to limited space on the left wall. We could center it on the upstand but risk water damage to grout, or install the hinge with the fixing plate on the bathroom side and position glass above the tray edge. The client chose the safer second option to prevent water getting between the tray and tiles. Through our custom shower doors, we found solutions that work even when space is tight.

Corner bi-fold shower enclosure with clear glass panels and brushed nickel hardware

Half-Wall Positioning Challenge

On the right side we have a half-wall, which created another design challenge. We couldn't install the glass centered or close to the edge because we needed to follow the tile joint where white tile meets grey. The glass had to sit exactly on this joint to look right.

Ideally the glass would sit centered on the half-wall or close to the outer edge so the half-wall works as a shelf for bottles and shower items. But because of the tile joint, we had limited options - installing the glass anywhere else would look odd. This shows how existing tile work can limit design choices when we're brought in after construction.

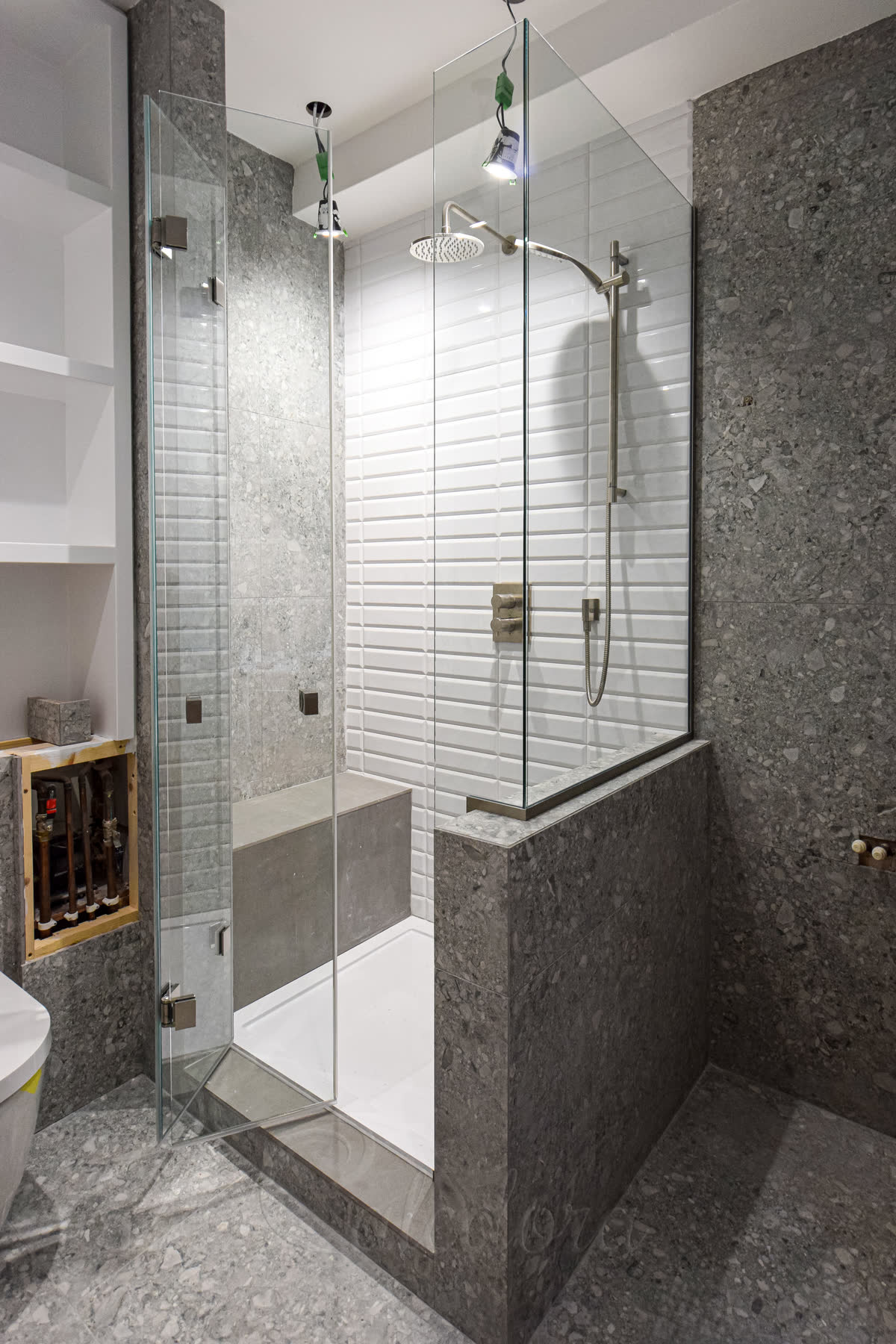

Bi-fold shower door opened outward showing the folding mechanism and dual door knobs

Frameless Bi-fold Design

The bi-fold door opens outward by pushing or pulling one of the panels, making it easy to get in and out even in tight spaces. This shower has no overhead track because it's a frameless installation - our showers are bespoke, not ready-made with chunky frames.

We UV-glued the two fixed screens on the right side so the structure stays solid without needing extra fixtures or top reinforcement bars. The shower door seals are minimalistic and barely visible on the edges - all our shower photos are taken with the seals in place so you can see how neat they look in real use.

Product Specification

Style

Corner Shower Enclosure

Metal Finish

Brushed Nickel

Glass Type

10mm Clear

Frame Style

Frameless

Special Features

Minimalistic Seals, Half-Wall Setup, Shaped Glass

Price Range

£££

Product Dimensions

Width

900mm

Depth

800mm

Height

2100mm

Custom sizes available - contact us for bespoke measurements

How Long for Bi-fold Shower Enclosure Installation?

Frameless corner installations rely on precise glass-to-glass connections and minimal hardware. Your Bi-fold Shower Enclosure timeline depends on measurement accuracy and wall preparation.

📋 Multiple Items: Each additional shower enclosure may extend Design and Installation by approximately 1 working day. However, orders of 5+ units benefit from streamlined production processes that reduce per-unit time. We'll provide an optimized timeline for your specific project.

Tiling Ready

Simplest Process

Your corner is tiled and both walls are ready for frameless installation. We'll measure the exact angles for glass-to-glass connections, then proceed directly with glass production.

Site Survey 1 day
Precise measurements and photos
Design & 3D 3 days
Create and approve your frameless design
Glass Production 8 days
Cutting, tempering, and processing
Installation 1 days
Professional fitting with minimal hardware

✓ Streamlined Process: Frameless options require less time than framed equivalents - just 13 working days total with precise measurements taken in one visit.

13
Working Days Total
8
Production Days
1
Days On-Site

Tiling Not Ready

Extended Timeline

Your corner walls need tiling before frameless installation. We'll take rough measurements for design visualization, then return for precise measurements once both walls are tiled.

Initial Visit 1 day
Rough measurements and photos
Design & 3D 3 days
Create initial frameless design
Waiting for Tiling Variable
Depends on your tiling schedule
Final Measurements 1 day
Precise measurements once tiling is complete
Design Adjustments 1 day
Update design if dimensions changed
Glass Production 8 days
Cut to exact measurements
Installation 1 days
Professional fitting with minimal hardware

💡 Flexible Timeline: The waiting period begins after design confirmation (day 4) and varies based on your tiling schedule. If your tiling is completed during this early period, we can arrange the final measurements earlier and advance the entire schedule - moving final measurements, design adjustments, glass production, and installation to start as early as day 5. The total timeline shows the minimum 15 working days if tiling is ready when design is confirmed.

15
Working Days Minimum
11
Production Days
1
Days On-Site
