How long does frameless bifold shower enclosure installation take?

frameless bifold shower enclosure requires 2 days for on-site installation. Our experienced team ensures perfect alignment and watertight seals.

What's the total timeline for frameless bifold shower enclosure?

The complete process takes 14 working days from initial survey to final installation, assuming your walls are already tiled. If tiling isn't ready, the timeline extends to 16 working days minimum.

Can frameless bifold shower enclosure be customised during production?

Yes, design changes can be made during the 3-day design phase. Our team will work with you to ensure the final design meets your exact specifications.

I need 3 identical frameless bifold shower enclosure units. How long will this take?

For 3 identical frameless bifold shower enclosure units, the timeline typically extends by 2-3 working days total, affecting mainly the Design, Assembly, and Installation phases. Your project would take approximately 16 working days instead of 14 days for a single unit. Each project is unique, so we'll confirm exact timings during your survey.

Project · London

Installed 2018

Black Bifold Shower Door - London

Frameless with U-channel · Ultra Clear 10mm · Black

This black bifold shower door was built for a compact loft bathroom in London. It includes spring-loaded hinges, a custom reinforcement arm on a sloped ceiling, and ultra-clear glass fixed using slim U-channels.

Size · 1000 × 1000 × 2000 mm

Includes: Double Bifold Doors, Reinforcement Arm, Corner Entry

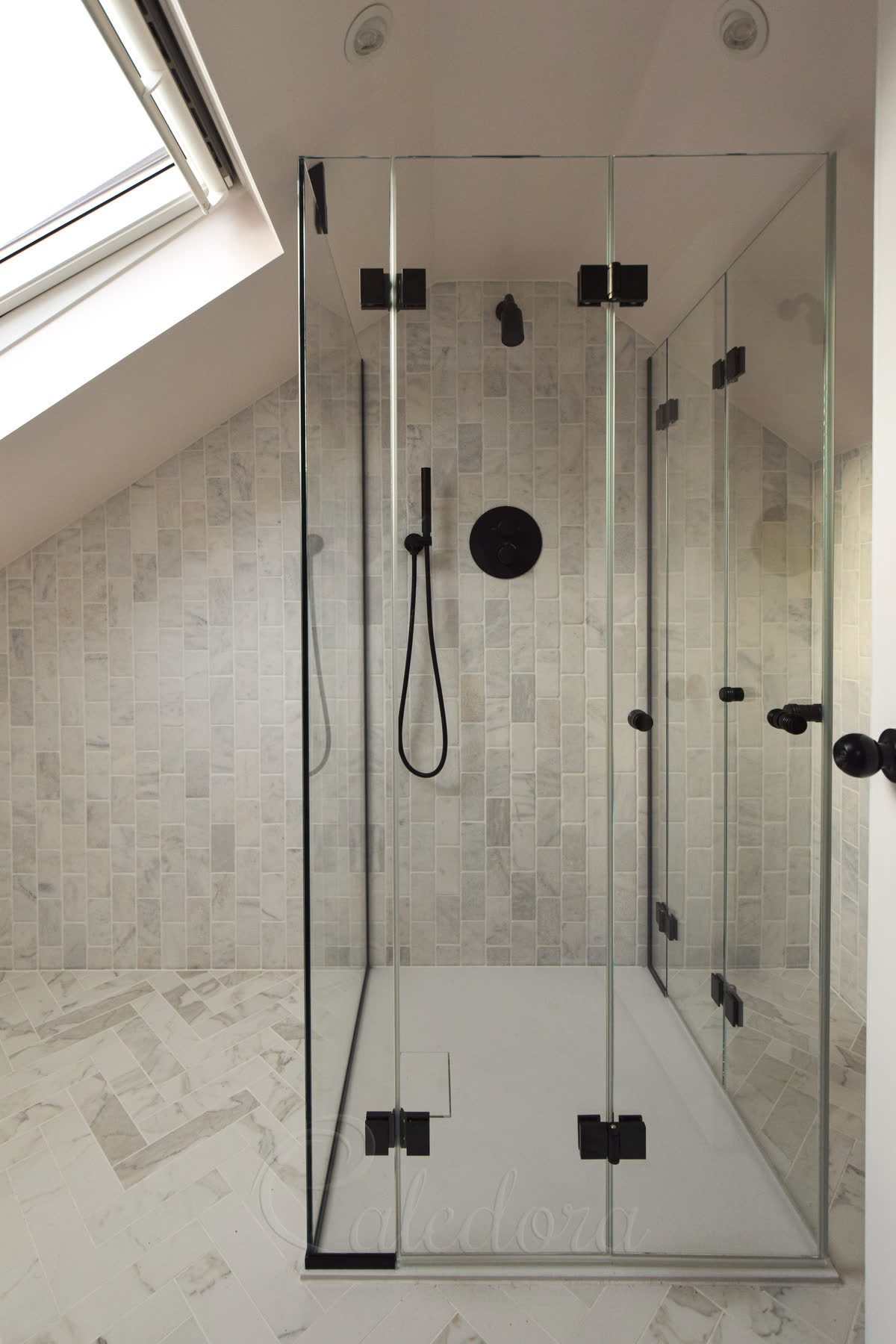

01 · Corner Detail

Black bifold shower door in corner enclosure with ultra clear glass in a small loft bathroom

Corner entry bifold shower door

We designed this shower with two bifold doors that fold inward, creating space around the central tray when not in use.

This layout allowed access to nearby furniture and improved flow in the bathroom. These doors showcase our bifold door expertise for complex spaces.

02 · Bifold

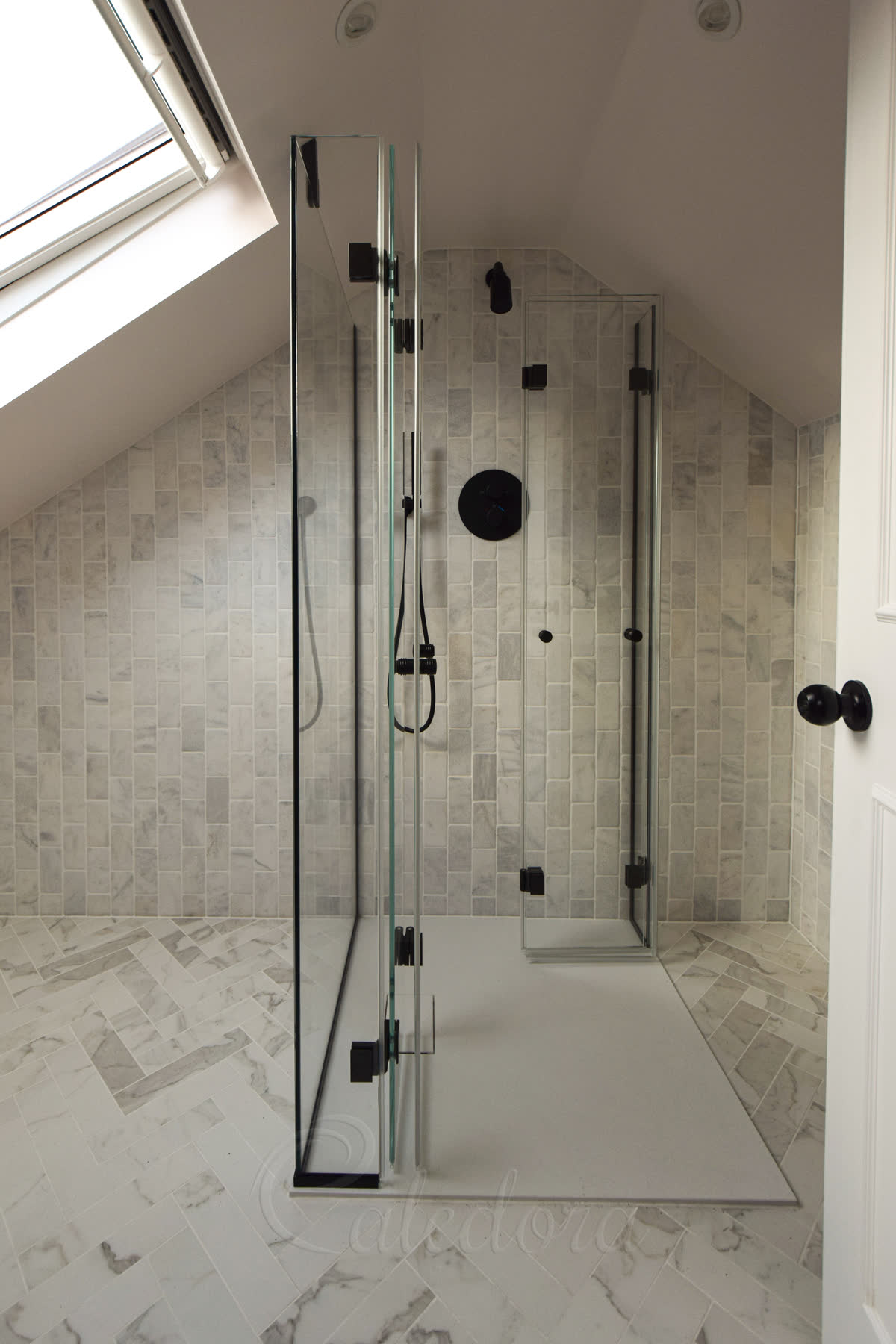

Black bifold shower door installed under eaves with angled ceiling and black hinges

Loft-adapted bifold door system

The ceiling above the fixed screen angled sharply, so we designed a custom reinforcement arm. It was shaped to match the slope and mounted with solid brackets.

This configuration secured the panel and removed the need for side reinforcement bars. It's one example of how our bespoke loft enclosure designs adapt to unusual room shapes.

03 · U-Channels

Inside view of black bifold shower door with U-channel fixing on tray

Sleek black bifold door fixings

We used a slim 20 mm black U-channel to mount the glass directly on the tiled tray and walls. All fixings are sealed flush to avoid interrupting the layout.

Minimalist black knobs and compact hardware matched the finish throughout. You'll find similar black bifold options in our shower door range.

04 · Hinges

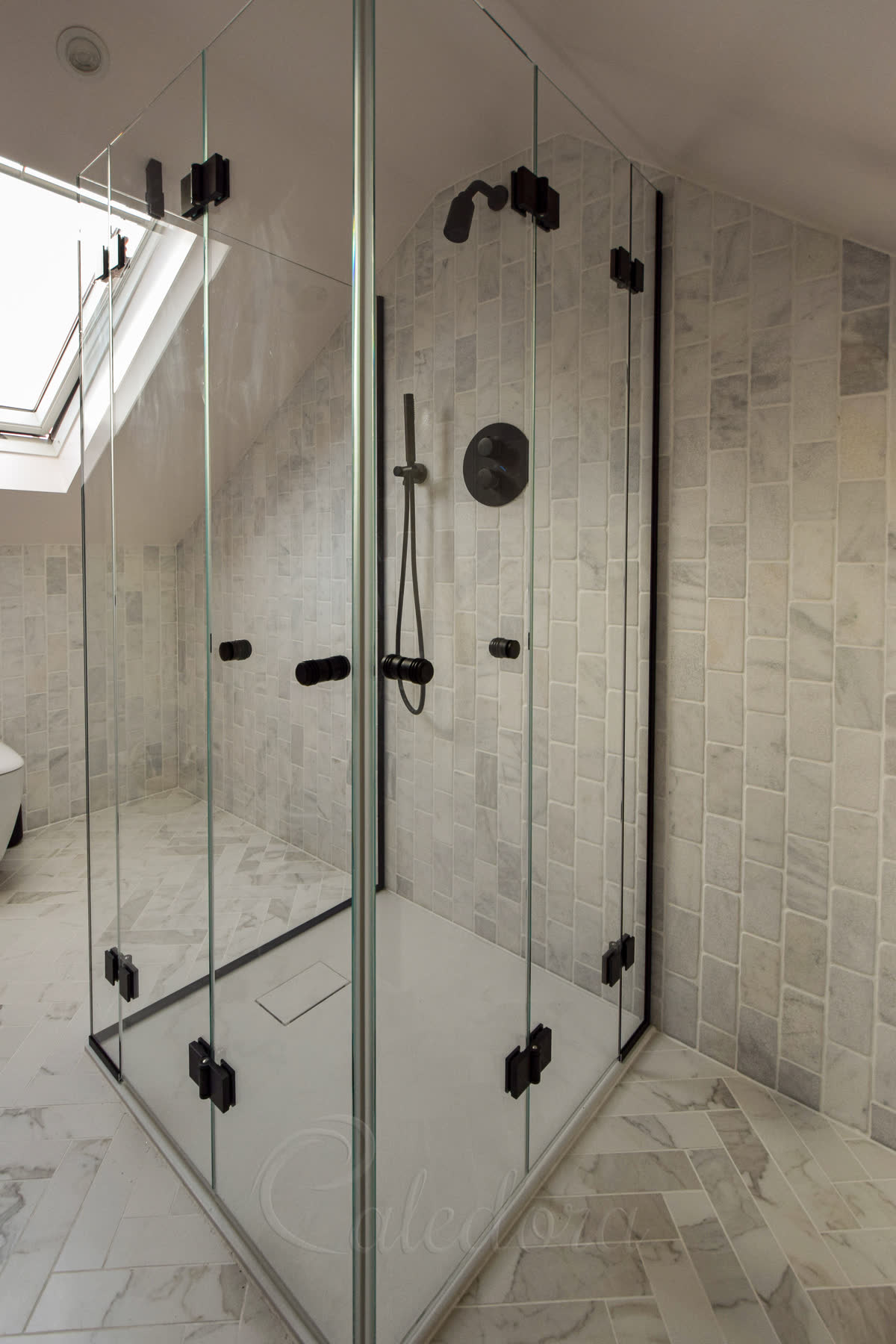

Black bifold shower door folded against wall to maximize space in compact bathroom

Space-saving bifold design

Once opened, the bifold door panels fold flat against the back wall and fixed screen. This gives extra walking space when the shower isn't in use.

This layout helps make a compact bathroom more accessible without losing stability or finish. The black bifold door hinges are spring-loaded, so they auto-align when shut.

05 · Sloped Ceiling

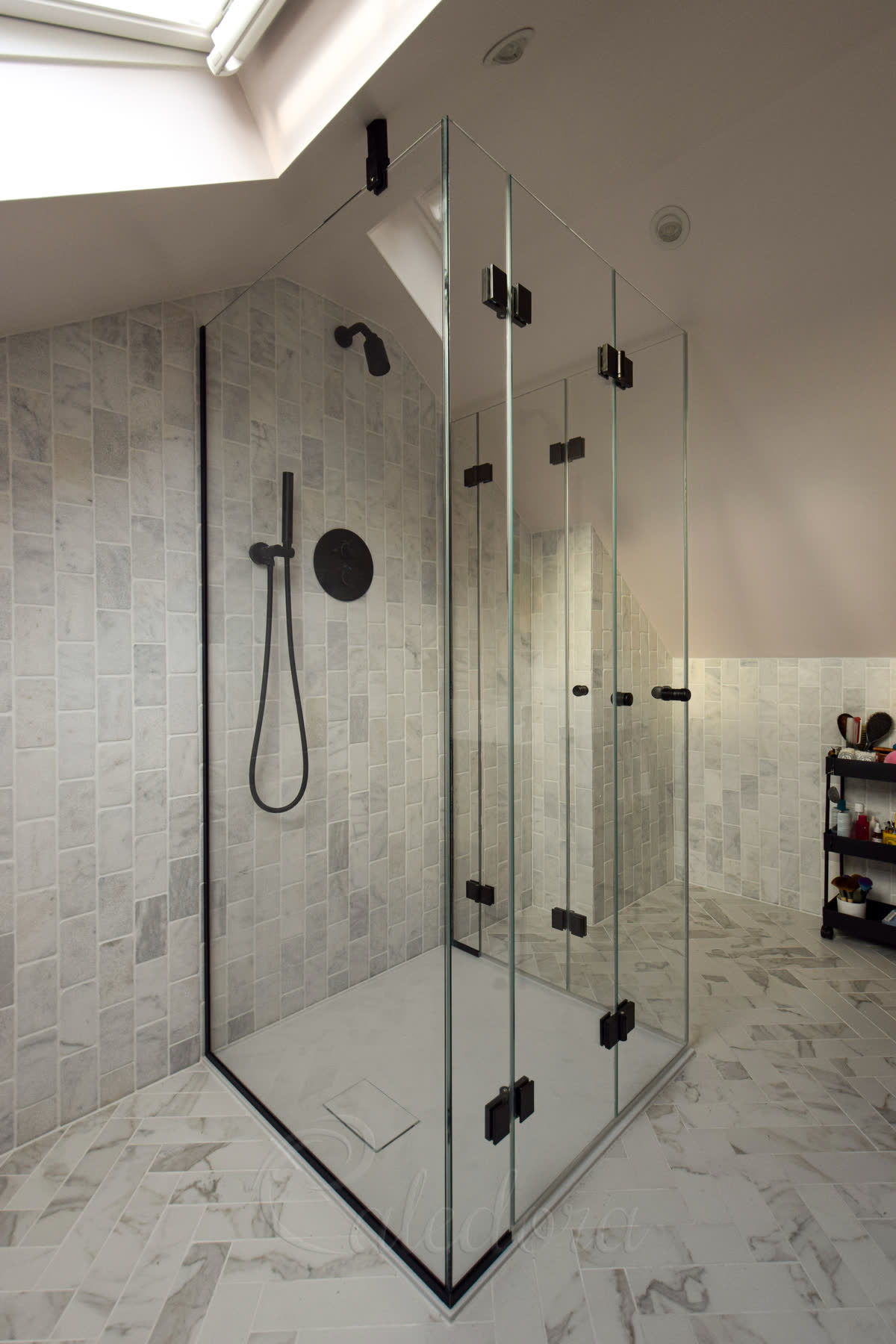

Top-mounted angled support arm fixed to ceiling above bifold shower door panel

Custom support for sloped ceiling

Standard support arms wouldn't work on this ceiling, so we made one with a custom bracket to fit the slope and hold the bifold door system steady.

The mount is hidden behind the sloped wall and angled inwards to stay visually light while reinforcing the corner panel of this stunning black shower enclosure.

06 · Threshold

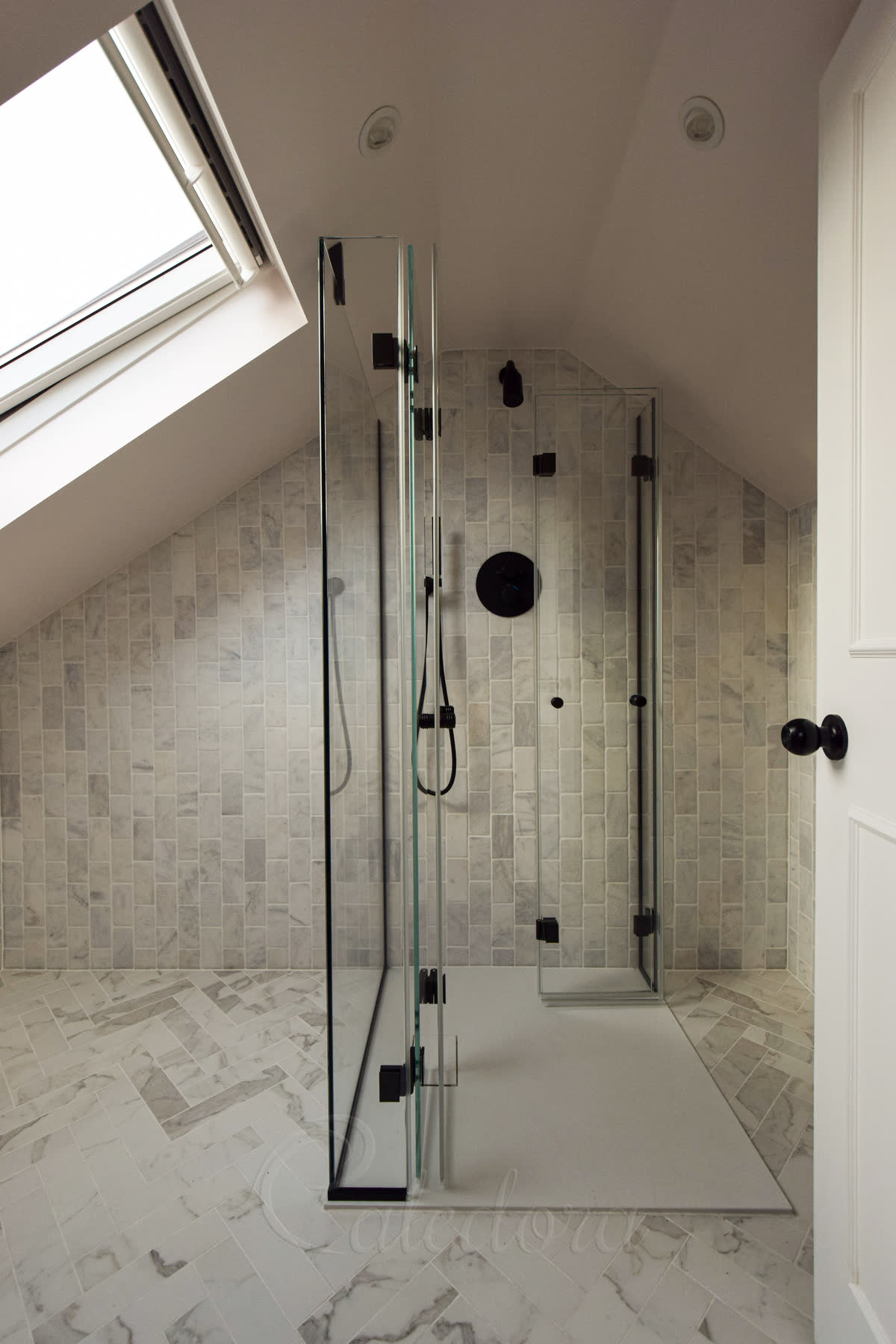

Black bifold shower door with spring-loaded hinges and minimal seals in loft bathroom

Precision bifold door for tight spaces

This bifold system includes clear, easy-clean glass and a transparent 10 mm threshold added after installation to manage water flow.

This contemporary shower enclosure setup was chosen after several companies failed to find a workable layout for this space. Our solution allowed us to function without compromising the design.

Dimensions

Width1000mm

Height2000mm

Depth1000mm

Custom sizes available — contact us for fitted measurements.
