How long does shower door with inline panel installation take?

shower door with inline panel requires 2 days for on-site installation. Our experienced team ensures perfect alignment and watertight seals.

What's the total timeline for shower door with inline panel?

The complete process takes 14 working days from initial survey to final installation, assuming your walls are already tiled. If tiling isn't ready, the timeline extends to 16 working days minimum.

Can shower door with inline panel be customised during production?

Yes, design changes can be made during the 3-day design phase. Our team will work with you to ensure the final design meets your exact specifications.

I need 3 identical shower door with inline panel units. How long will this take?

For 3 identical shower door with inline panel units, the timeline typically extends by 2-3 working days total, affecting mainly the Design, Assembly, and Installation phases. Your project would take approximately 16 working days instead of 14 days for a single unit. Each project is unique, so we'll confirm exact timings during your survey.

Project · London

Installed 2017

Black Shower Door with Inline Panel - London

Frameless · Ultra Clear Glass · Satin Black

We fixed this black shower door with an inline panel in a bathroom in London. The frameless design keeps the shower and bathroom separate while maintaining an open feel. Our team worked with the client to help get a minimalist look by using black satin hardware. This setup demonstrates that inline designs are effective in bathrooms with microcement floors.

Size · 1200 × 2000 mm

Includes: Easy Clean Glass Coating, Minimalistic door seals

01 · Knob

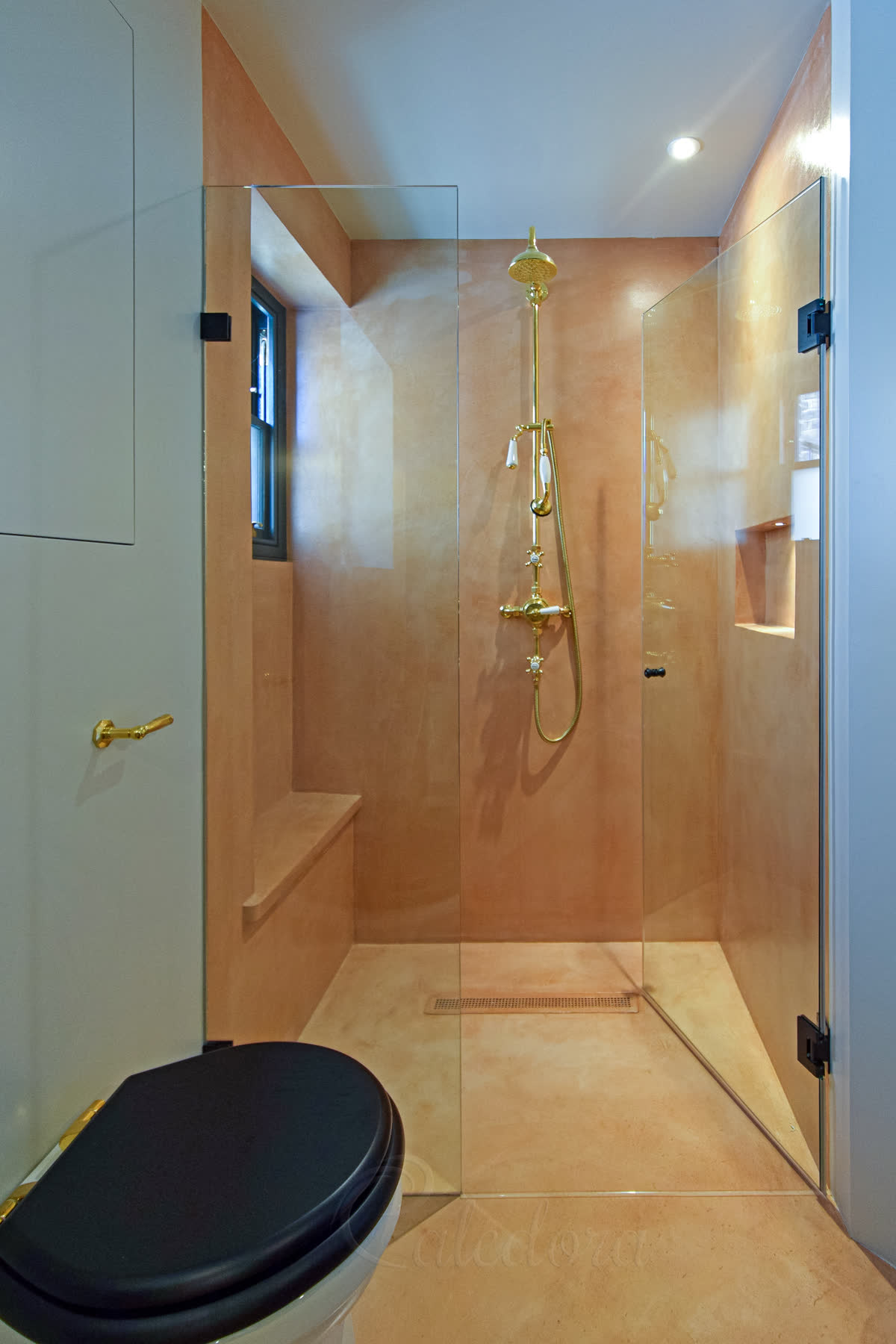

Black frameless shower door partially open showing inline panel configuration

Frameless Hinged Door Opening

The black shower door opens partway inward, showing the frameless hinged system we chose. Black wall brackets support the fixed glass panel on the left side. We selected a small doorknob rather than a handle to prevent wall contact when the door is open. Minimalistic door seals keep the clean, frameless look while containing water.

Our team mounted the hinges directly onto the right wall for smooth operation. The frameless setup features 10 mm clear glass with an easy-clean coating that repels water and soap. Two square 50 mm black brackets secure the fixed screen to the left wall. This setup provides the best solution when one door cannot span the whole opening.

02 · Mastic Detail

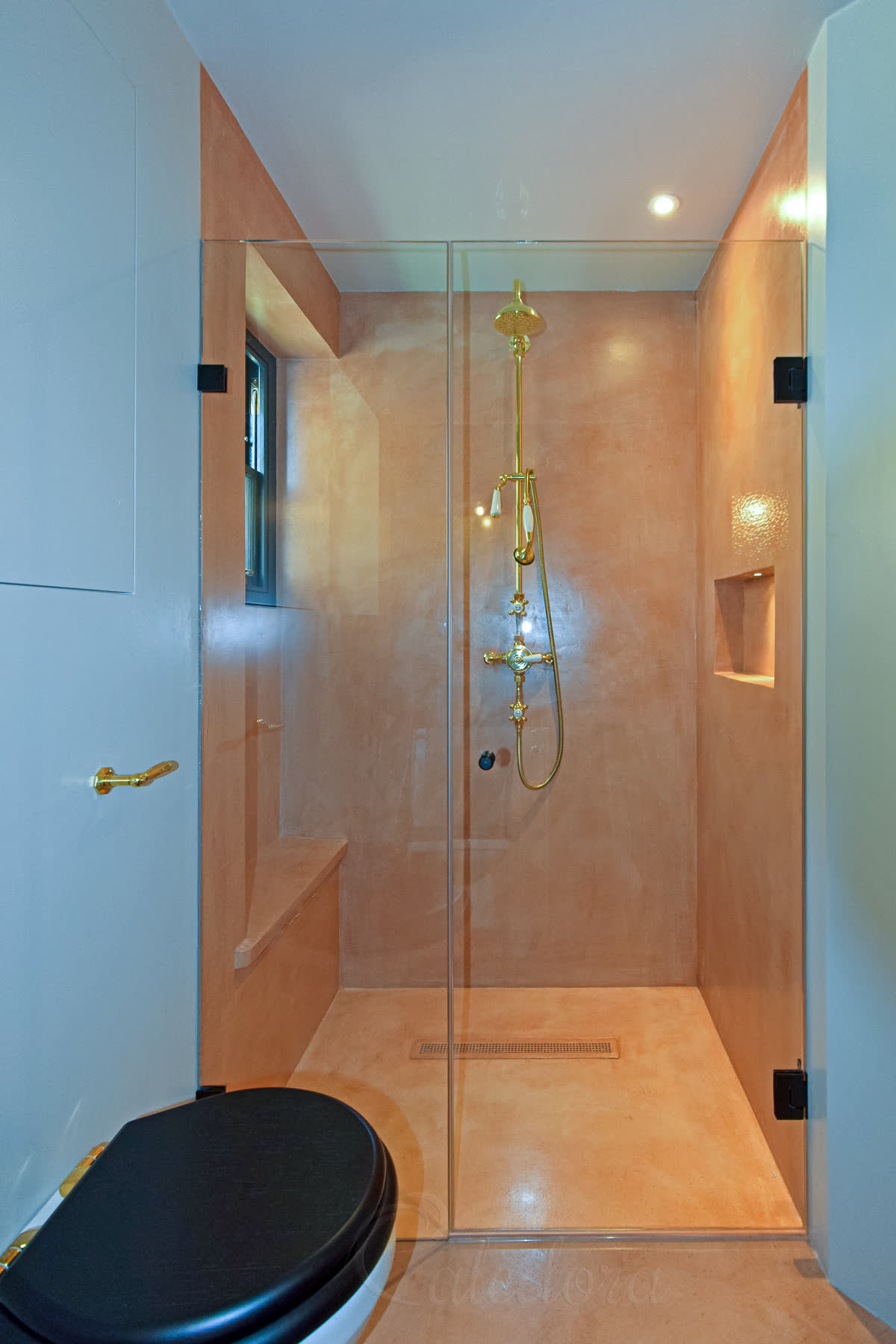

Closed black shower door aligned with fixed inline panel in microcement bathroom

Door and Panel Alignment

The closed door aligns perfectly with the fixed inline panel for a smooth glass front. Self-centring hinges ensure the door and screen line up when closed. A clear acrylic threshold is positioned beneath the door to control water flow. The client chose 5 mm height despite our 10 mm suggestion, accepting some splash risk.

We left 2 mm gaps between the glass and the walls for movement. Clear mastic seals these gaps and nearly disappears against the wall. The brass shower fixtures complement the black hardware nicely. This inline setup works well for various shower door styles and sizes.

03 · Wall Brackets

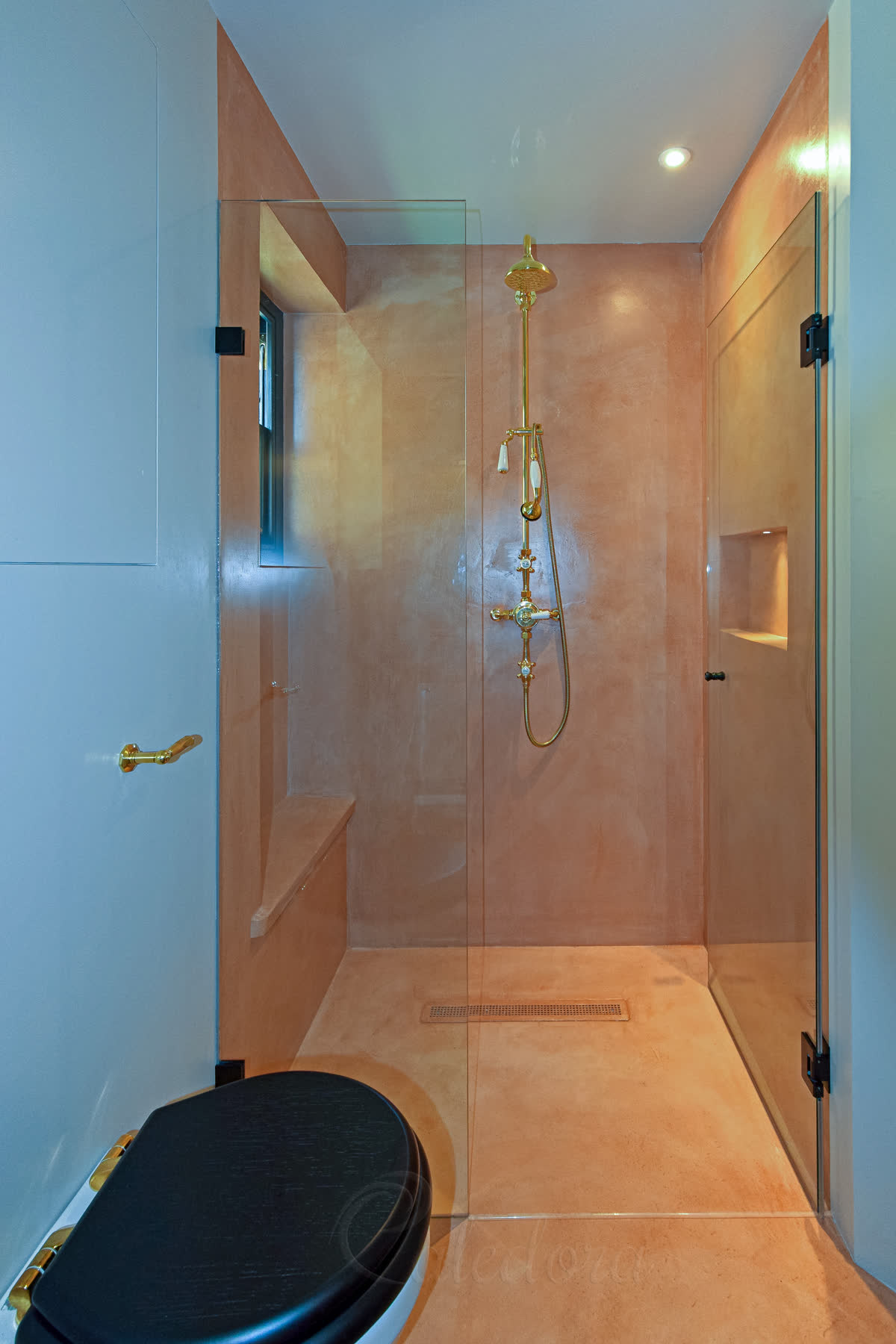

Fully opened shower door demonstrating dual-swing hinges against wall

Dual-Swing Door Function

The fully opened door demonstrates how frameless hinges work in both directions. These hinges let this toughened hinged shower door swing in and out for flexible access. Our fitters positioned all parts to improve bathroom access and ensure smooth operation. The door opens fully against the wall without extra clearance or damage.

The black hardware significantly changes the appearance of the bright bathroom. The satin finish does not show fingerprints as much as polished versions do. We aligned the wall brackets and door hinges so they matched. This conventional placement, 250 mm from the top and bottom, keeps swing door systems in balance.

04 · Threshold

Detail of clear acrylic threshold beneath black framed shower door

Minimalist Threshold Design

The clear threshold blends with the cream floor beneath. This glass-like acrylic piece bonds directly to the floor surface. Water from the door seal flows back into the shower via the threshold. The low profile of this reliable shower enclosure maintains a walk-in feel while effectively managing water.

We made the threshold 5mm high, as requested by the client, to minimise the visual impact. Standard 10mm thresholds provide better water protection in busy households. The rounded edge ensures safe stepping while keeping the sleek look. This detail shows our custom approach to each project.

Dimensions

Width1200mm

Height2000mm

Custom sizes available — contact us for fitted measurements.

How Long Does Shower Door with Inline Panel Take to Manufacture?

Frameless designs emphasize clean lines and minimal hardware for maximum visual impact. Your Shower Door with Inline Panel timeline depends on precise measurements and tiling completion.
