Antique Brass Frameless Hinged Shower Door - Northampton
Frameless · 10mm Low iron Glass · Antique Brass
We finished installing an antique brass shower door for a traditional Northampton bathroom. The project uses a wide 900 mm door with three hinges for additional support. Our clear glass and wall hinges create an entrance that matches the copper bath and marble tiles.
Size · 900 × 2150 mm
Includes: Minimalistic Door Seals, Three Hinges
01 · Marble Context
Traditional Bathroom Integration

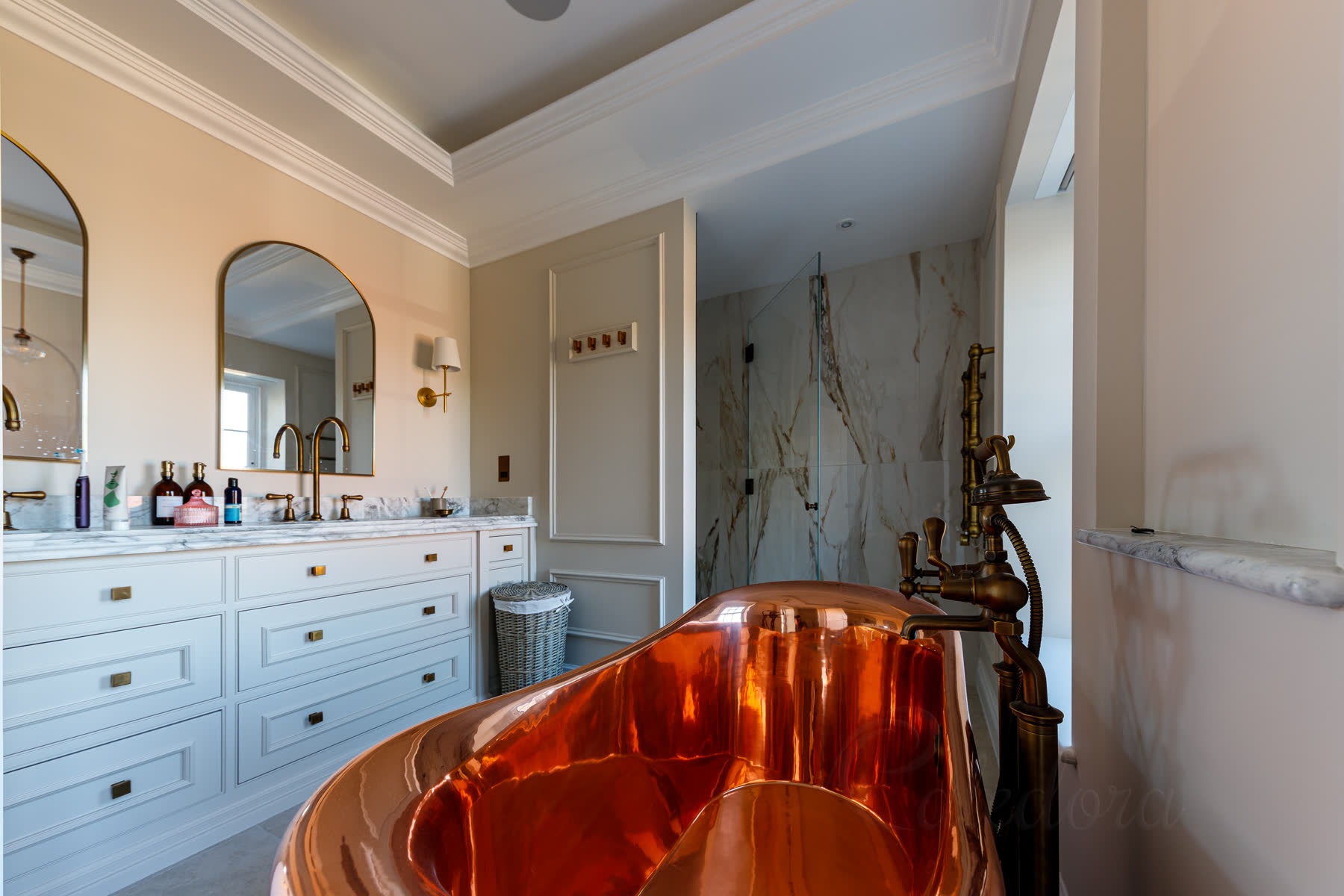

This renovation integrated our door with the existing classic bathroom design. The bathroom features a copper bathtub and tiles with a marble pattern on the walls. The shower is located on the left side, creating a separate shower space. The antique brass finish complements the copper bathtub, as well as the taps and mirrors, which also feature this finish.
Our door design complements the bathroom's traditional look while providing modern functionality. The ultra-clear glass has no green tint, unlike regular glass. Our solution keeps the view through the shower clear and maintains the bathroom's appealing look.
02 · Wide Door
Wide Door Engineering Solution
The 900 mm door width needs more support than standard doors. We used three hinges instead of two for proper support. The extra middle hinge costs a bit more but gives better long-term use. This setup effectively supports the door's weight and width.
Our door seals are 8mm wide and barely show on the glass edges. They give excellent water control around the door edges. The seals attach straight to the glass without clips. This approach works across all our available shower door options and maintains a clean look.
03 · Knob
Traditional Doorknob Detail

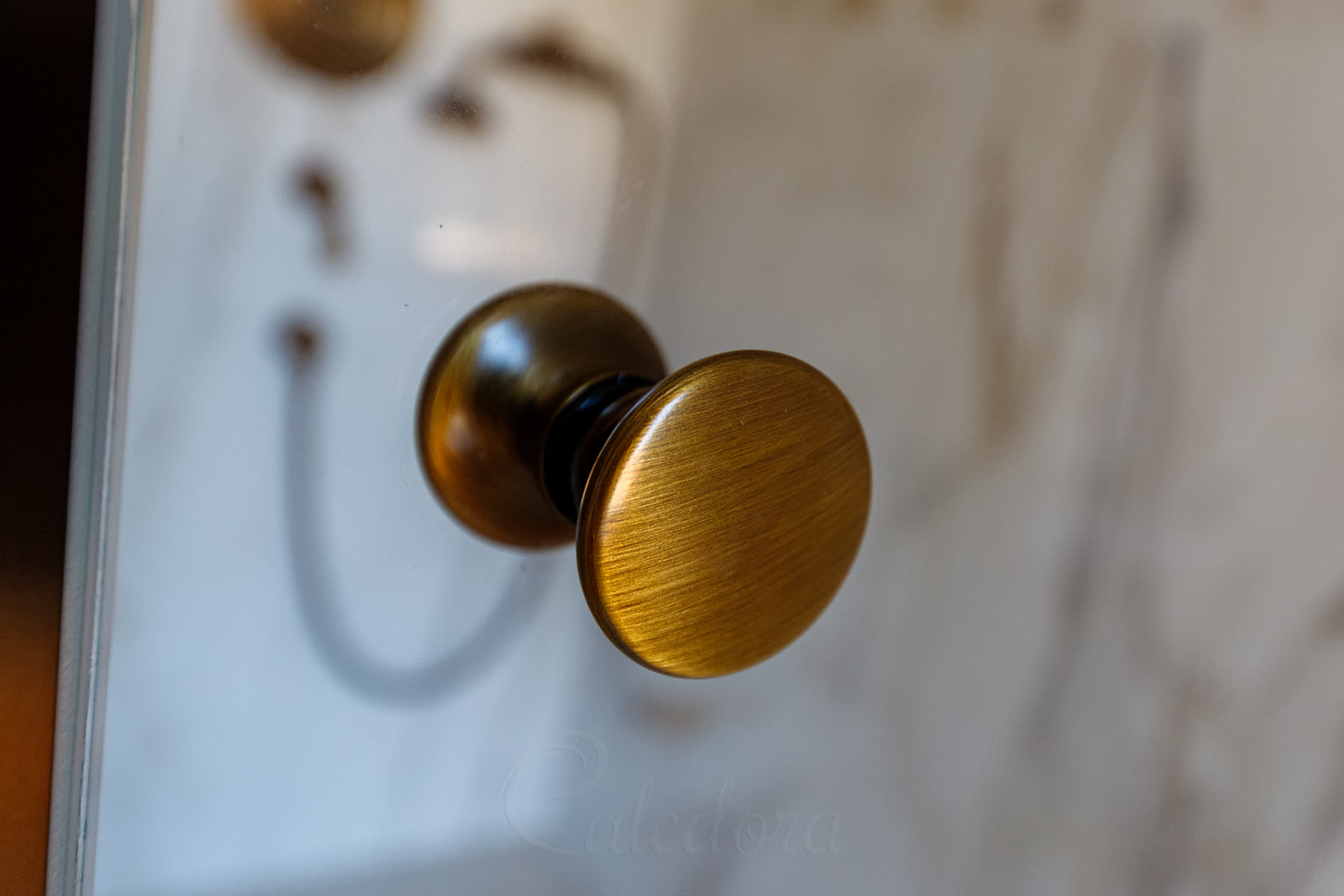

We chose a traditional doorknob instead of a handle to match the old-style bathroom design. The antique brass features a protective coating that maintains its appearance over time. The knob protrudes less from the glass than the handles do, which benefits door operation.
The doorknob is 950 mm high for easy use by people of different sizes. This height works well with the walk-in tiled floor that has no raised edges. The round design matches the old style, while modern parts inside ensure smooth use.
04 · Hinges
Offset Back Plate Wall Mounting
Our wall hinges conceal the fixing screws within the shower area, keeping them out of sight. The hinge plates pass through the tiled wall and into the structure using long screws for optimal strength and stability. This way looks better than having visible screws on the outside.
The hinges are positioned 250 mm apart from the top and bottom door edges, with the centre hinge located equally spaced between them. Each hinge features a spring mechanism that assists with aligning the glass when closing. The system makes sure this robust hinged shower door is automatically centred.
05 · Alcove Layout
Swing Operation and Towel Access

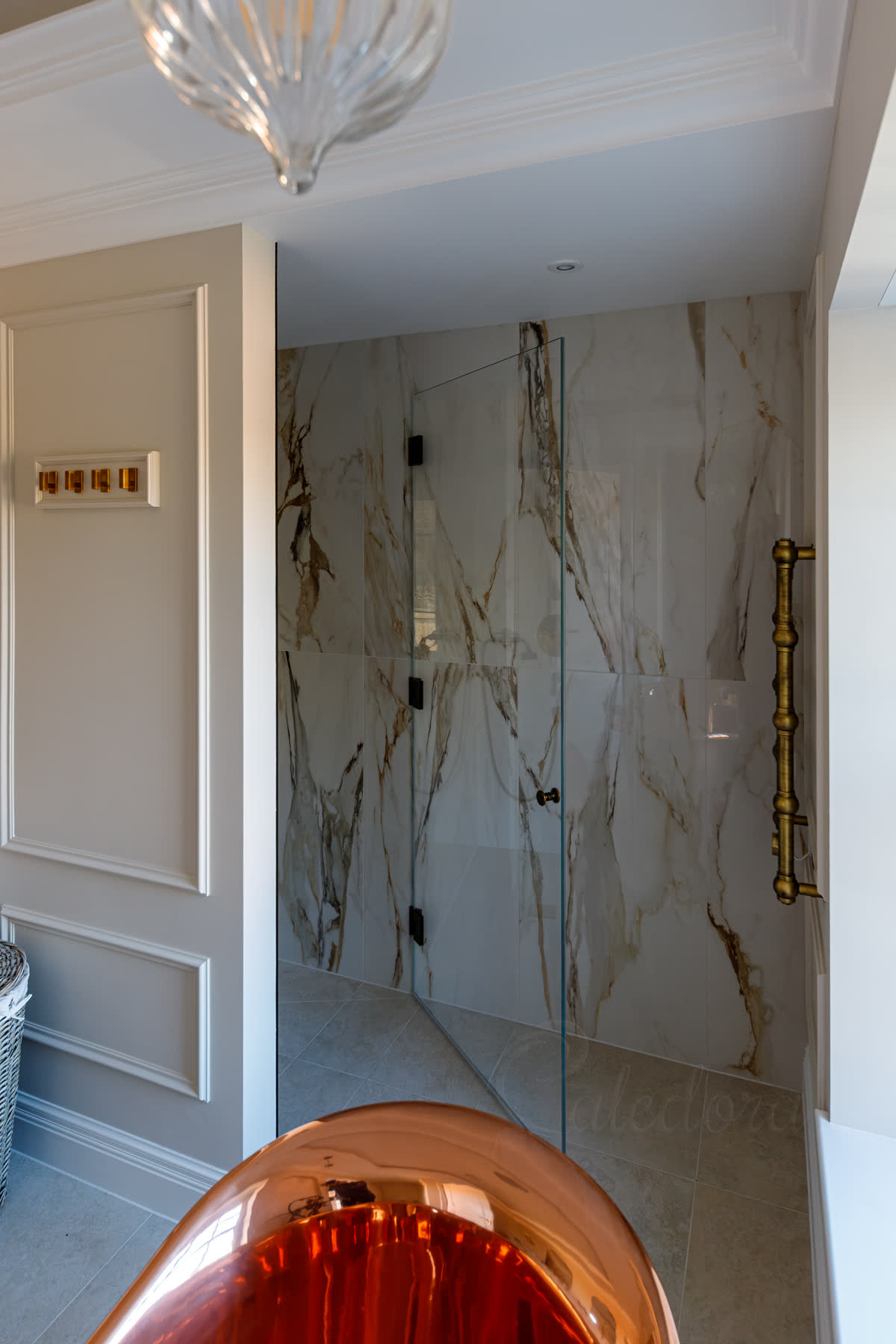

The door opens outward toward the back wall, preventing it from blocking the entrance to the alcove. This opening direction ensures users can access the shower freely without obstruction. The door can swing 90 degrees both inside and outside, providing flexible operation.
The client positioned an antique brass towel rail on the wall in front of the door. When leaving the shower area, the towel is easily accessible. The location was selected as the most practical position given bathroom layout constraints. The towel rail finish matches the door hardware, creating design continuity.
06 · Towel Rail
Practical Layout Planning

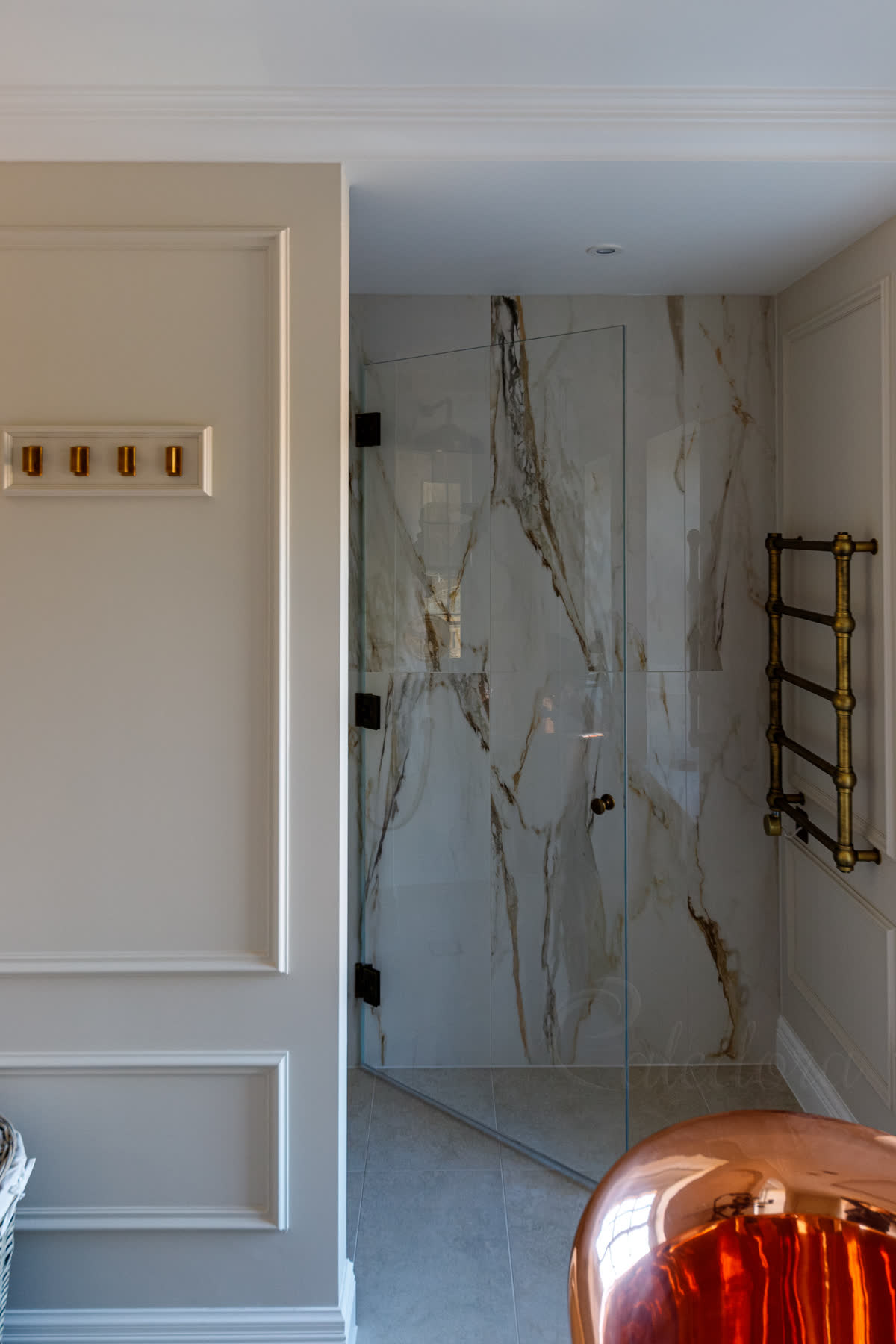

When the door is fully open, the shower area fits perfectly into the bathroom plan. You can see how the door swing and towel rail placement work well together. The shower effectively uses the available floor space. The walk-in flooring transitions smoothly from the bathroom to the shower, featuring a slope for optimal drainage.
The setup makes it easy to transition from the shower area to the main bathroom. The tiled floor extends to the shower, so there are no raised trays. The glass door integration retains the bathroom's original design while providing additional features.
Dimensions
Width900mm
Height2150mm
Custom sizes available — contact us for fitted measurements.
